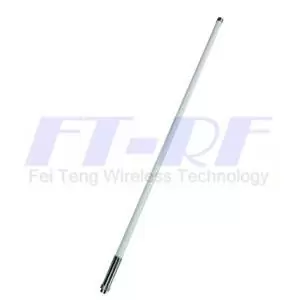

2.4GHz to 2.5GHz 10dBi Outdoor Mini OMNI Directional Down Tilt 7 Deg Antenna (N-Male)2.4GHz to 2.5GHz 10dBi Outdoor Mini OMNI Directional Down Tilt 7 Deg Antenna (N-Male)2.4GHz to 2.5GHz 10dBi Outdoor Mini OMNI Directional Down Tilt 7 Deg Antenna (N-Male)

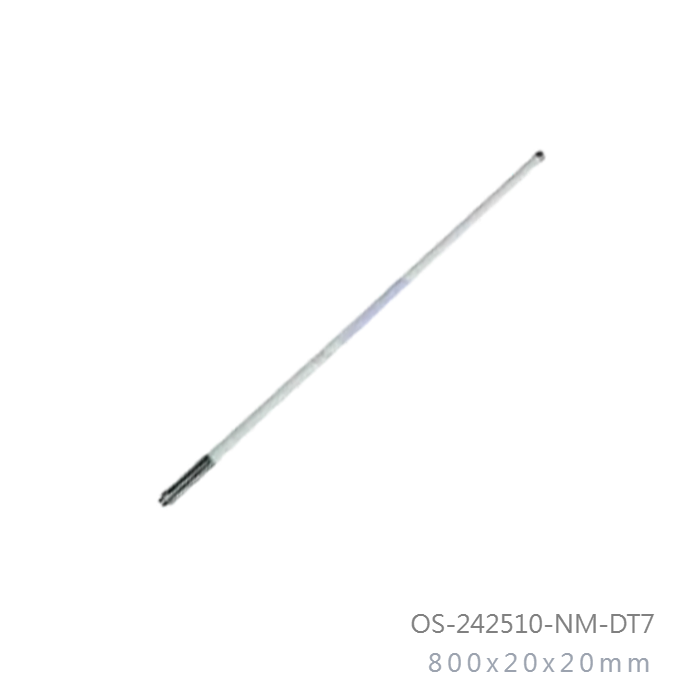

Model No: OS-242510-NM-DT7

  • Original Model No.: OA-242510SDT7-NM
  • Dimension : 800x20x20mm
  • Weight : 300g
  • Connector : N-Female
  • -3dB Beamwidth : Horz.360 deg Vert.8 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Pubic Wireless Hotspot
  • WiFi, RFID
  • Antenna Radiation Down Tilt

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • Installed for Collinear Vertical Polarization
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Rutern Loss (LOW)

15db

Antenna Type

Collinear

Gain (MAX)

10 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

10 Deg

Horizontal Beam-width

360 Deg

Down Tilt 7 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Male

Length (MAX)

800mm

Diameter (MAX)

20 x 20 mm

Antenna Weight (G.W)

250 g

Accessories (G.W)

5 g

Wind Survival

Greater than 150MPH

Operating Temperature

-40 to +80

Radome Material

White Fiberglass

Parts Material

Aluminum

Mounting

Stainless Steel

Safety, Emission and other

RoHs, WEEE
