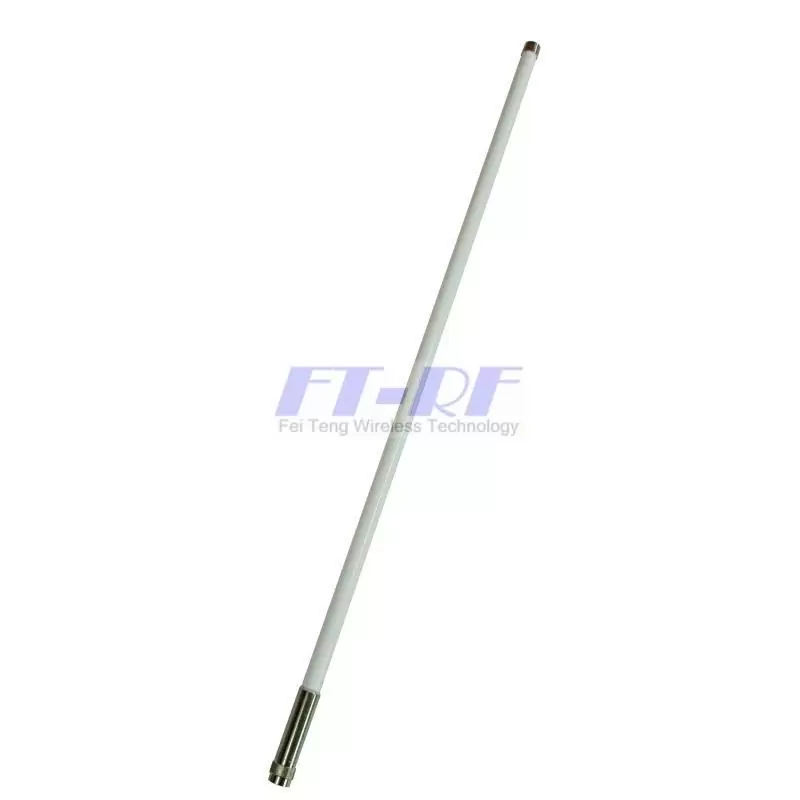

Description
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2.4GHz-2.5GHz ISM Band
- IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan
- Omni Directional Multipoint applications
- Bluetooth, Point to Multipoint
- Pubic Wireless Hotspot
- WiFi, RFID
- Antenna Radiation Down Tilt
Features:
- Superior Performance
- Lightweight
- Good appearance design
- Installed for Collinear Vertical Polarization
- RoHS Compliant
|
Frequency Range |
2400MHz - 2500MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Return Loss (LOW) |
15db |
|
Antenna Type |
Collinear |
|
Gain (MAX) |
12 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beamwidth |
8 Deg |
|
Horizontal Beamwidth |
360 Deg |
| Down Tilt | 7 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Male |
|
Length (MAX) |
1130mm |
|---|---|
|
Diameter (MAX) |
20 x 20 mm |
|
Antenna Weight (G.W) |
365 g |
|
Accessories (G.W) |
5 g |
|
Wind Survival |
Greater then 150MPH |
|
Poerating Temperature |
-40 to +80 |
|
Radome Material |
White Fiberglass |
|
Parts Material |
Aluminum |
|
Mounting |
Stainless Steel |
|
Safety, Emission and other |
RoHs, WEEE |
