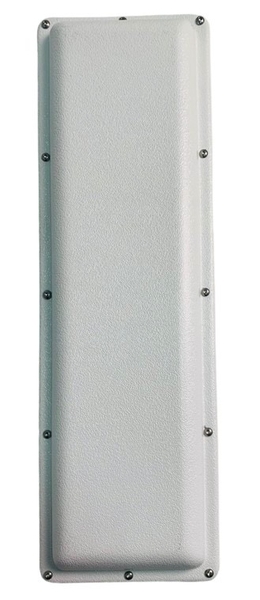

2.4GHz to 2.5GHz 14dBi 2x2 MIMO Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

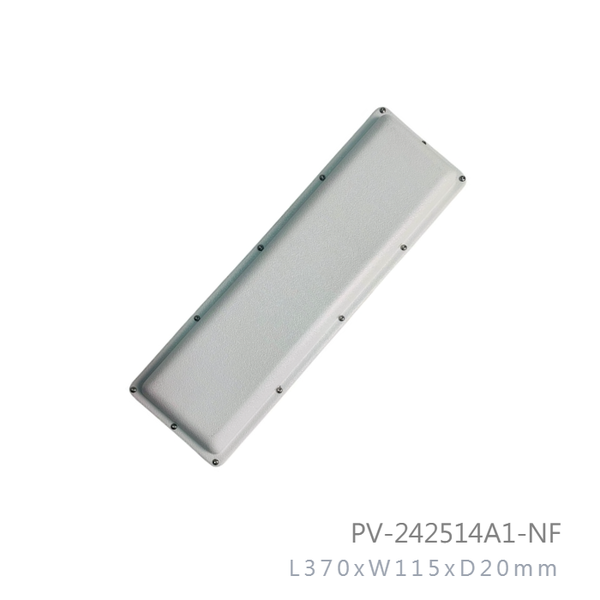

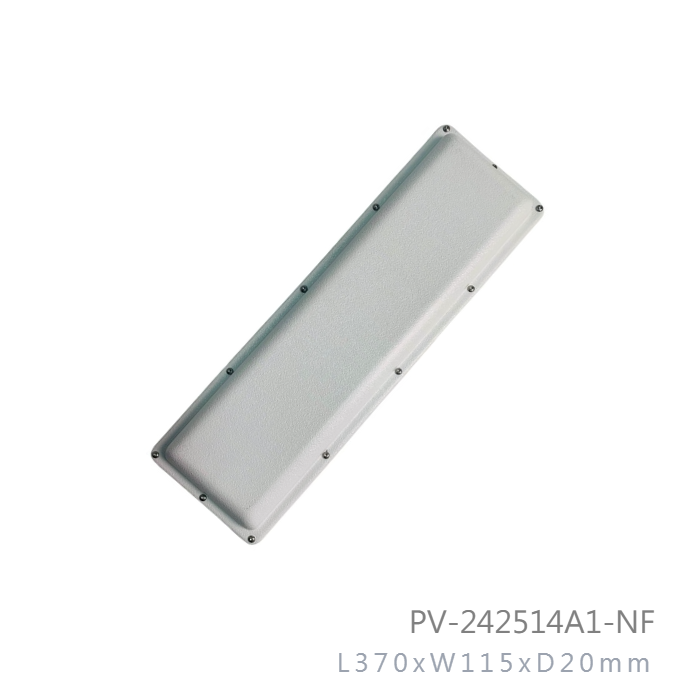

Model No: PV-242514A1-NF

  • Dimension : L370xW115xD20mm
  • Weight : 290g
  • Connector : N-Female*2
  • Beam-width :Horz.Port1: 16 Deg / Port2: 59 Deg
  • Beam-width :Vert.Port1: 79 Deg / Port2: 18 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band
  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan
  • Directional Multipoint applications 2 x 2 TX/RX
  • MIMO 2x2 Dual Port
  • Pubic Wireless Point to Point
  • WiFi,RFID
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting brackets
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain (max)

14 dBi

Polarization

Dual Polarization

Vertical and Horizontal

Maximum Power

5 Watts

 -3db Vertical Beam-width

Port1 : 79 deg

Port2 : 18 deg

-3db Horizontal Beam-width

Port1 : 16 deg

Port2 : 59 deg

FBR(avg) Greater than 14dB
Isolation  Greater than 20dB

Impedance

50 Ohm

Antenna Design

Patch Array

Internal Material

FR4 (Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

370 x 115mm

Diameter (MAX)

20mm

Antenna Weight (G.W)

290 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
