Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 2.4GHz-2.5GHz ISM Band
- IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
- Directional Multipoint applications 2 x 2 TX/RX
- MIMO 2x2 Dual Port 9.5dBi
- Pubic Wireless Point to Point
- WiFi, RFID
- Wireless Video Systems
Features:
- Superior Performance
- Lightweight
- Good appearance design
- DC Short lightning protection
- support is up and down or so to adjust
- Behind and support is an aluminum
- Outdoor antenna for public hotspots
- Includes tilt and swivel mast mounting brackets
- RoHS Compliant
|
Frequency Range |
2400MHz - 2500MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain |
16 dBi |
|
Polarization |
Dual Polarization Vertical and Horizontal |
|
Maximum Power |
5 Watts |
|
-3db Vertical Beam-width |
Port1 : 21 deg Port2 : 22 deg |
|
-3db Horizontal Beam-width |
Port1 : 22 deg Port2 :23 deg |
| FBR | Greater than 23 dB |
| Cross Polarization | Greater than -20 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
9(3x3) Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female x 2 |
|

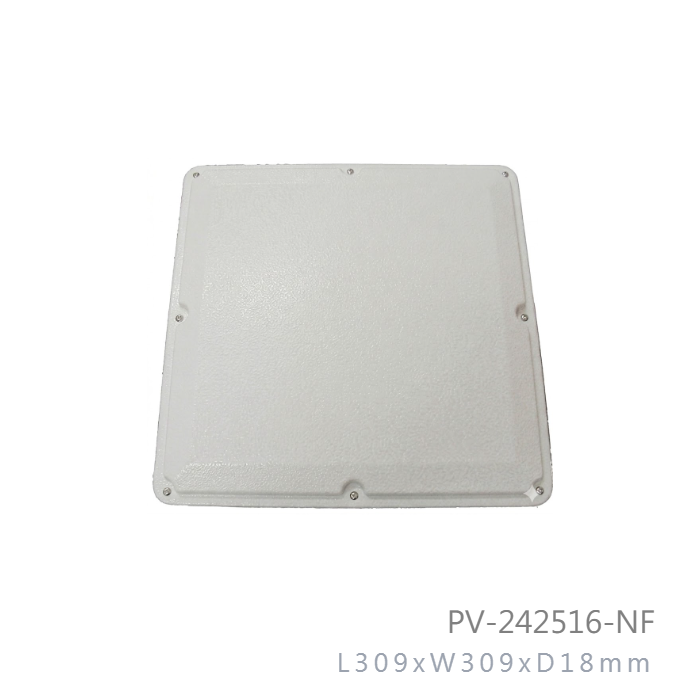

Length x Width(MAX) |
309 x 309mm |
|---|---|
|
Diameter (MAX) |
18mm |
|
Antenna Weight (G.W) |
800 g |
|
Accessories (G.W) |
300 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS |
| Mount Style | Pole Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel and Aluminum |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater then 120MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS |
