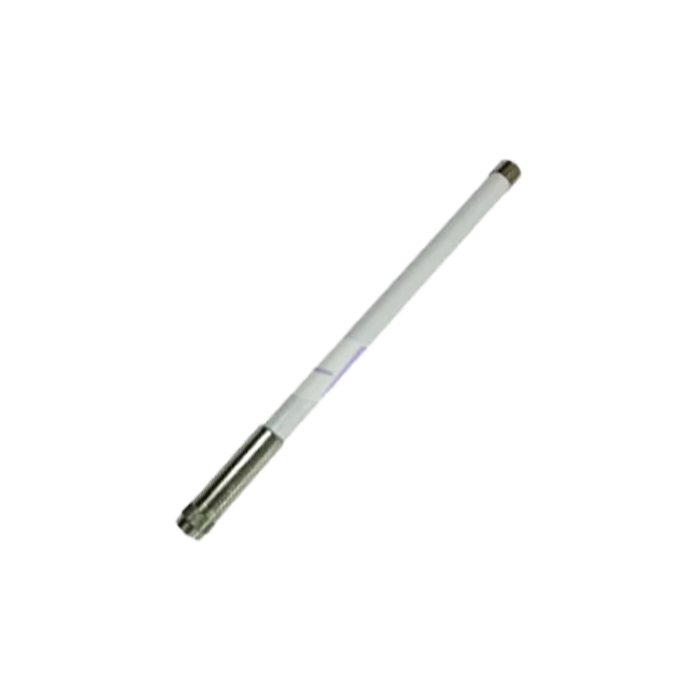

2.4GHz to 2.5GHz 4dBi Mini OMNI Directional Outdoor Antenna (N-Male)2.4GHz to 2.5GHz 4dBi Mini OMNI Directional Outdoor Antenna (N-Male)2.4GHz to 2.5GHz 4dBi Mini OMNI Directional Outdoor Antenna (N-Male)

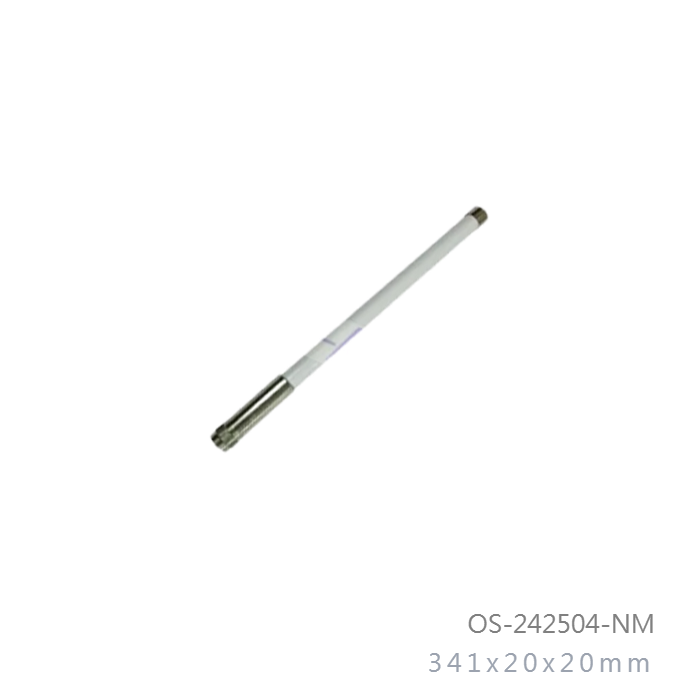

Model No: OS-242504-NM

Datasheet:Download

  • Dimension : 341x20x20mm
  • Weight : 190g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.30 deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • MINI Omni Directional Multipoint applications
  • Bluetooth
  • Pubic Wireless Hotspot
  • WiFi, RFID
  • Wireless Video Systems
  • MIMO

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • Base station antennas, miniature design
  • DC Short lightning protection
  • Installed for Collinear Vertical Polarization
  • Behind and support is an aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (Ave)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (Ave)

4 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

30 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Male



Length (MAX)

341 mm

Diameter (MAX)

20 x 20mm

Antenna Weight (G.W)

190 g

Accessories (G.W)

5 g

Application Indoor / Outdoor

Radom Material

White Fiberglass

Ground Material

Aluminum or Copper

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing
Storage Humidity   5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
