Descriptions

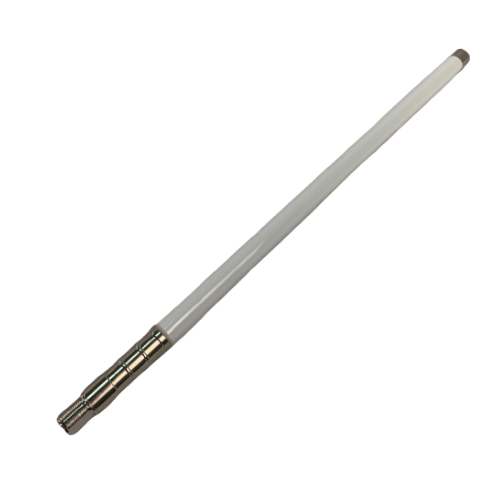

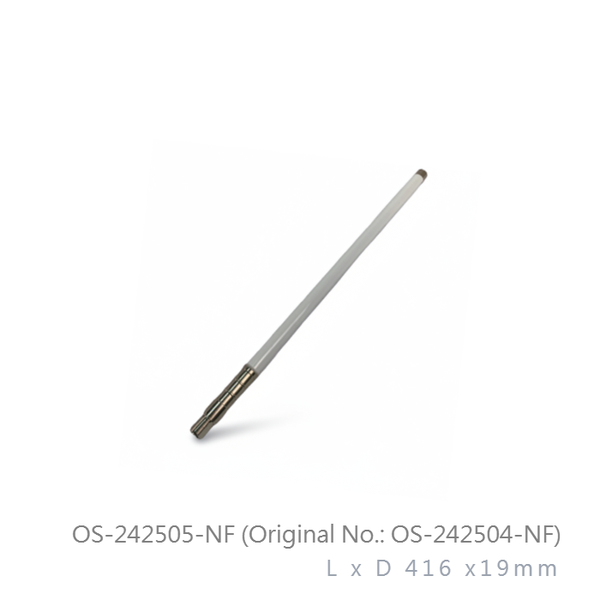

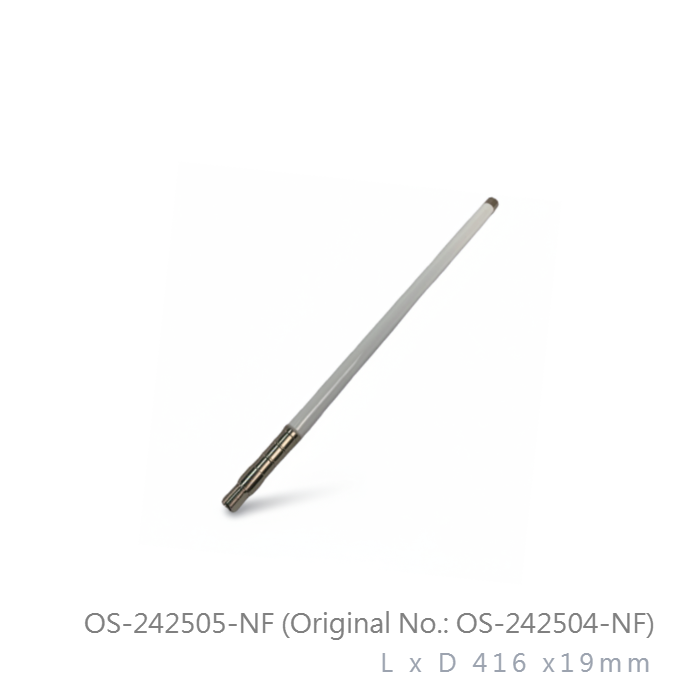

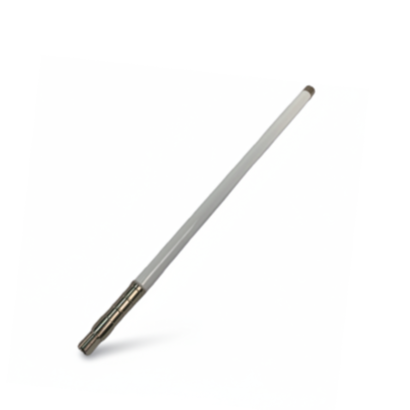

2.4 GHz to 2.5 GHz N-Female Professional Outdoor Mini Omni-Directional Antenna
High-Performance Fiberglass Radome | Industrial Wireless Connectivity | Model: OS-242505-NF
The OS-242505-NF is a laboratory-grade Omni-Directional Mini Omni-Directional Antenna designed as a precision calibration standard for the 600 MHz to 800 MHz band. It delivers a pure radiation pattern by avoiding cable feed interference. Rigorously engineered to meet 360° Horizontal Coverage Pattern requirements.
Electrical & RF Specifications
| Frequency Range | 2400 MHz to 2500 MHz (2.4 GHz ISM Band) |
| V.S.W.R (MAX) | ≤ 1.5:1 (Typical across 2.4-2.5 GHz range) |
| Antenna Gain | 4 dBi |
| Radiation Pattern | Omni-Directional (360° Horizontal) |
| Polarization | Linear, Vertical |
| Beamwidth (-3dB) | Horizontal: 360° | Vertical: Optimized for Wide Area Coverage |
| Power Handling | 50 Watts (CW) |
| Nominal Impedance | 50 Ohm |
Mechanical & Environmental Specifications
| Dimensions | Compact Mini Form Factor (Optimized for Discreet Mounting) |
| Connector Style | N-Type Female (Integrated Base) |
| Radome Material | UV-Stable White Fiberglass |
| Compliance | RoHS, WEEE Compliance |
| Environmental Rating | Outdoor Weatherproof Design |
Key Engineering Features
Durable Fiberglass Radome
Engineered with a high-grade white fiberglass radome, this antenna provides exceptional protection for internal radiating elements against UV radiation, moisture ingress, and corrosive atmospheric conditions, ensuring long-term reliability in outdoor deployments.
Compact Mini Design
The miniature form factor is specifically designed for discreet installations where aesthetic impact must be minimized without compromising RF performance. It is ideal for urban infrastructure, smart city nodes, and industrial IoT gateways.
360-Degree Wide Coverage
Optimized internal radiation elements provide a consistent 360-degree horizontal signal pattern, delivering uniform wireless coverage for 2.4GHz WiFi networks and industrial wireless systems across broad areas.
Industrial Grade Reliability
Built for mission-critical deployments, this antenna is designed to withstand harsh outdoor environments and high-interference areas, making it the preferred choice for professional wireless communication infrastructure.
For custom mounting solutions, specific frequency tuning, or bulk project inquiries, please contact our technical engineering department.
