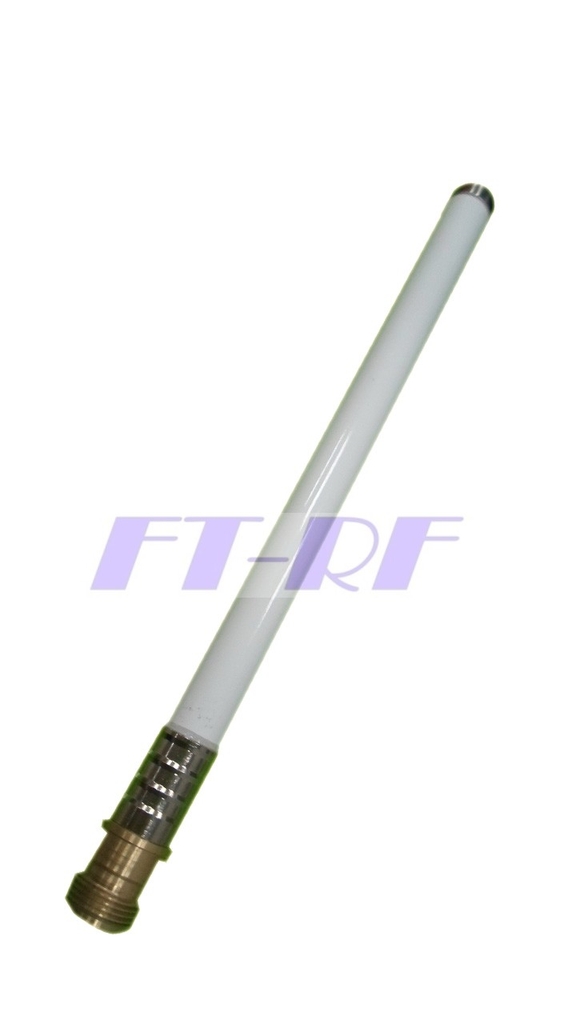

2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna (N-Female)2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna (N-Female)2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna (N-Female)

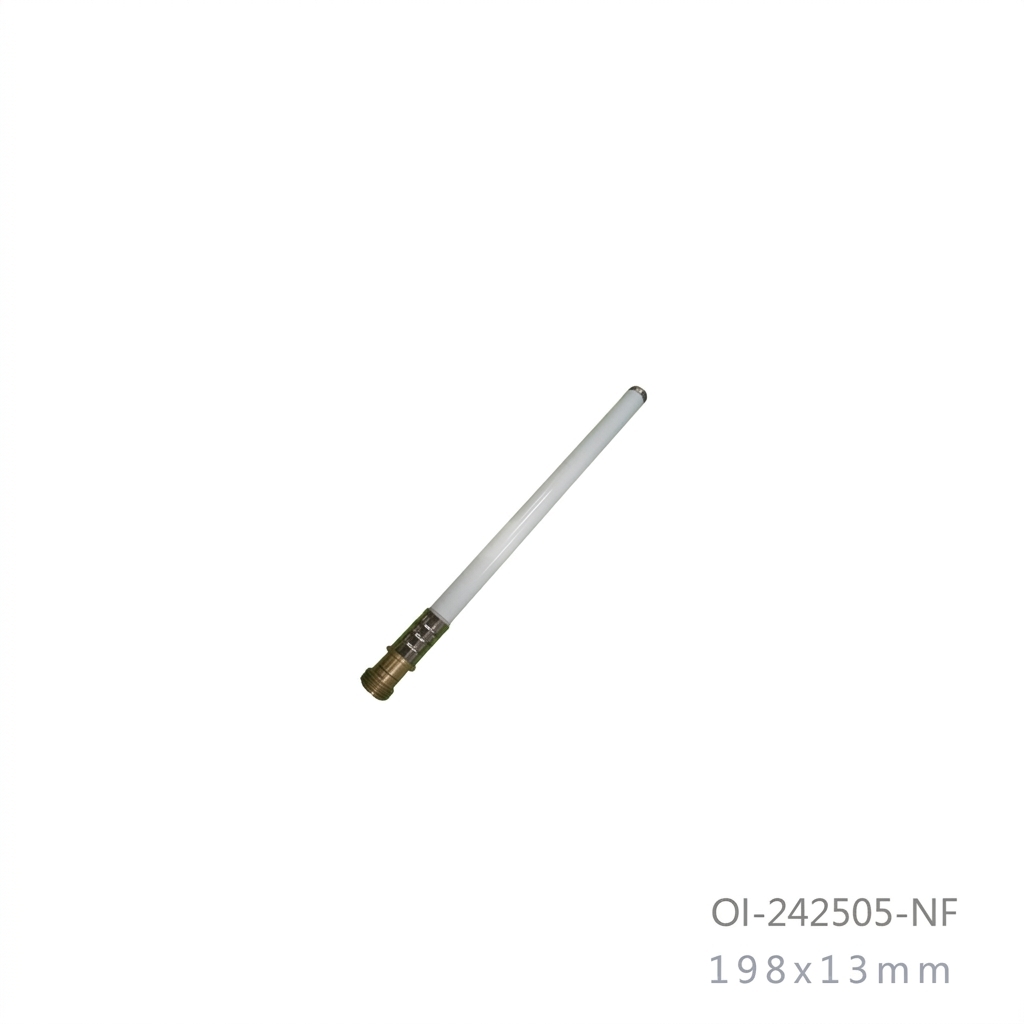

Model No: OI-242505-NF

  • Dimension : 198x13mm
  • Weight : 57g
  • Connector : N-Female
  • Beam-width : Horz.360 Deg Vert.36 Deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz 5dbi Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Pubic Wireless Hotspot
  • WiFi, RFID, Zebee
  • Wireless Video Systems

Features:

  • Collinear Vertical Polarization Installation
  • Outdoor antenna for public hotspots
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.5 : 1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Input Power

0.5 Watts

Vertical Beam-width

36 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

PCB+Spring

Connector

N-Female

Length (MAX)

198 mm

Diameter (MAX)

13 mm

Antenna Weight (G.W)

57 g

Application Outdoor / Indoor

Radome Material

White Fiberglass

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

 Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emssion and other   RoHS
