2.4GHz to 2.5GHz 6dBi Outdoor Mini OMNI Directional Up Tilt 7 Deg Antenna (N-Male)

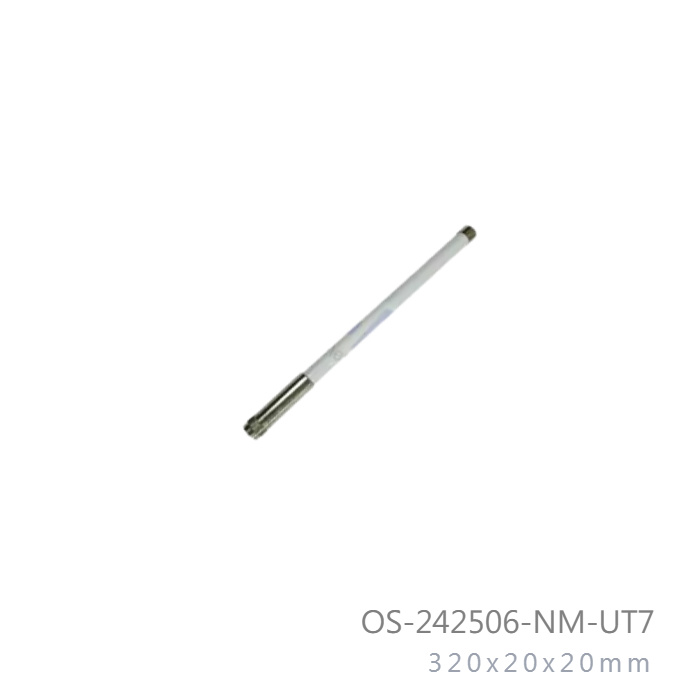

Model No: OS-242506-NM-UT7

  • Original Model No.: OS-242506-UT7-NM
  • Dimension : 320x20x20mm
  • Weight : 160g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.25 deg
  • Up Tilt : 7 deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • MINI Omni Directional Multipoint applications
  • Bluetooth
  • Pubic Wireless Hotspot
  • WiFi, RFID
  • Wireless Video Systems
  • MIMO

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • Base station antennas, miniature design
  • DC Short lightning protection
  • Installed for Collinear Vertical Polarization
  • Behind and support is an aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Return Loss (LOW)

15db

Antenna Type

Collinear

Gain (MAX)

6 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

25 Deg

Horizontal Beam-width

360 Deg

Up Tilt 7 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Male

Length (MAX)

320mm

Diameter (MAX)

20 x 20 mm

Antenna Weight (G.W)

165 g

Accessories (G.W)

5 g

Wind Survival

Greater than 150MPH

Operating Temperature

-40 to +80

Radome Material

White Fiberglass

Parts Material

Aluminum

Mounting

Stainless Steel
