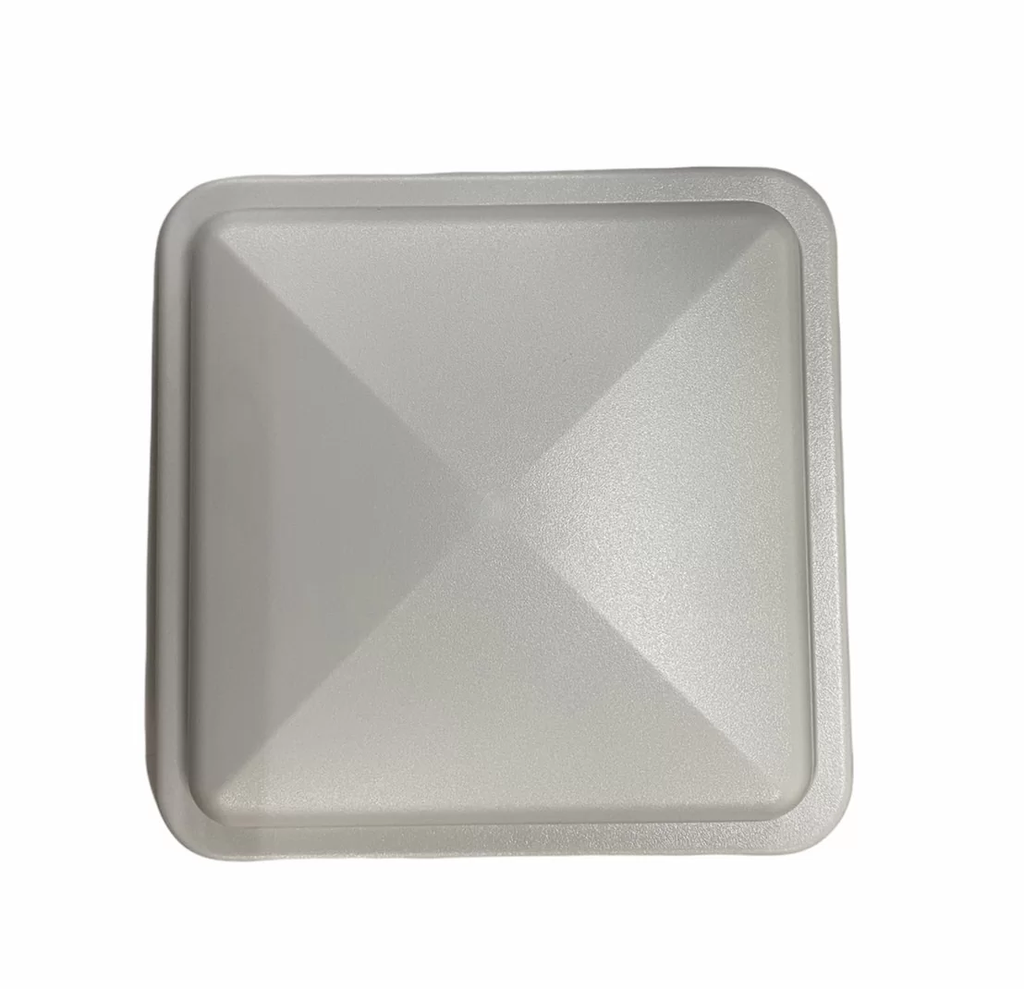

2.4GHz to 2.5GHz 8dBi 2x2 MIMO Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.4GHz to 2.5GHz 8dBi 2x2 MIMO Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.4GHz to 2.5GHz 8dBi 2x2 MIMO Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

Model No: PV-242508-NF

Datasheet:Download

  • Dimension : L130xW130xD25mm
  • Weight : 160g
  • Connector : N-Female*2
  • Beamwidth : Horz.Port1:60 Deg / Port2: 63 Deg
  • Beamwidth : Vert.Port1: 41 Deg / Port2: 41 Deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan
  • Directional Multipoint applications 2x2 TX/RX
  • MIMO 2x2 Dual Port 8dBi
  • Pubic Wireless Point to Point
  • WiFi, RFID, MIMO
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots

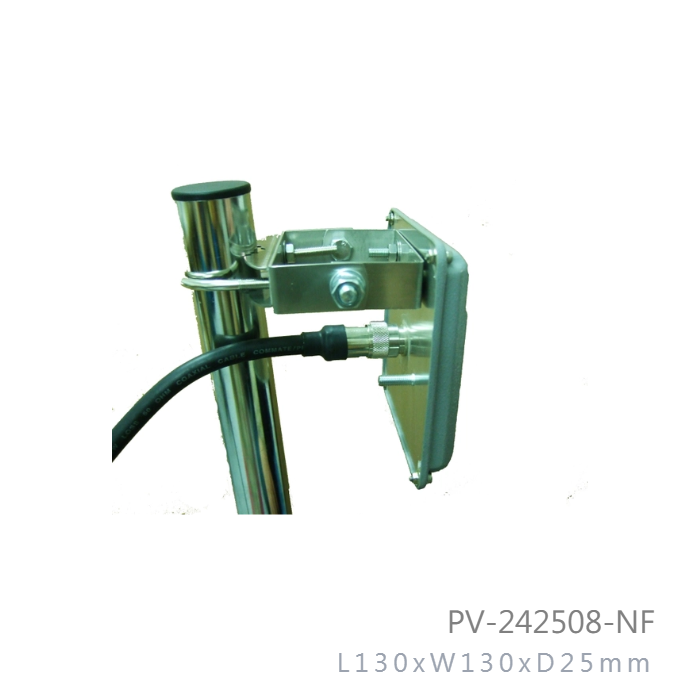

  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (Avg)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain(Avg)

8 dBi

Polarization

Dual Polarization

Vertical and Horizontal

Maximum Power

5 Watts

-3db Vertical Beam-width

Port1:41 deg

Port2:41 deg

-3db Horizontal Beam-width

Port1:60 deg

Port2:63 deg

FBR(Avg) Greater than 14 dB
Cross Polarization Greater than -20 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4 (Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

130 x 130mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

160 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS
