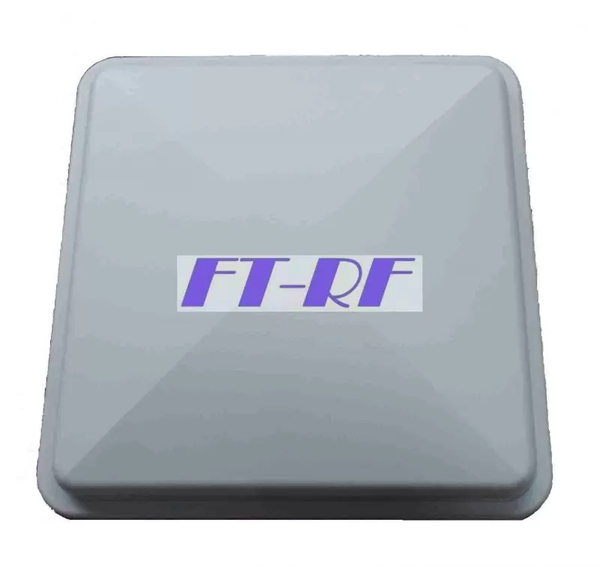

2.4GHz to 2.5GHz LHCP Circularly polarized 13dBi Panel Directional Outdoor Antenna2.4GHz to 2.5GHz LHCP Circularly polarized 13dBi Panel Directional Outdoor Antenna2.4GHz to 2.5GHz LHCP Circularly polarized 13dBi Panel Directional Outdoor Antenna

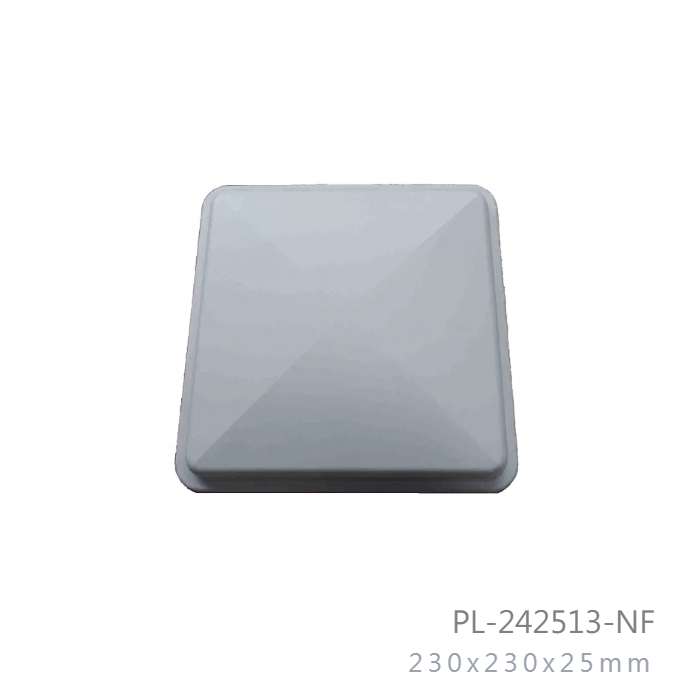

Model No: PL-242513-NF

  • Dimension : 230x230x25mm
  • Weight : 0.34 KG
  • Connector : N-Female
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Directional Multipoint applications
  • Point to Point Bridge
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi, RFID, WLAN
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Narrow base station descent
  • Behind and support are made of aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Return Loss (LOW)

15db

Antenna Type

Patch Type

Gain

13 dbi

Polarization

Circularly LHCP

Maximum Power

5 Watts

LHCP Beam-width

36Deg

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4 (Taiwan)

Connector

N-Female

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

340 g

Accessories (G.W)

300 g

Wind Survival

Greater than 150MPH

Operating Temperature

-40 to +80

Radom Material

ABS

Parts Material

Aluminum

Mount Adjustment

0-30deg

Mounting

Stainless Steel And Aluminum
