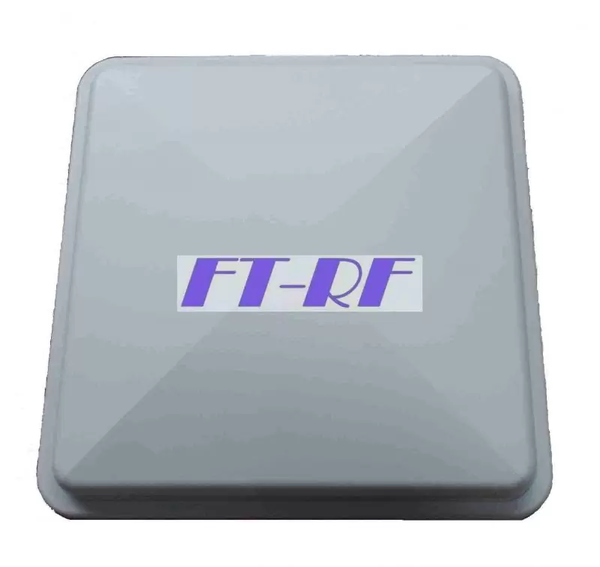

2.4GHz to 2.5GHz RHCP Circularly Polarized 7dBi Panel Directional Outdoor Antenna2.4GHz to 2.5GHz RHCP Circularly Polarized 7dBi Panel Directional Outdoor Antenna2.4GHz to 2.5GHz RHCP Circularly Polarized 7dBi Panel Directional Outdoor Antenna

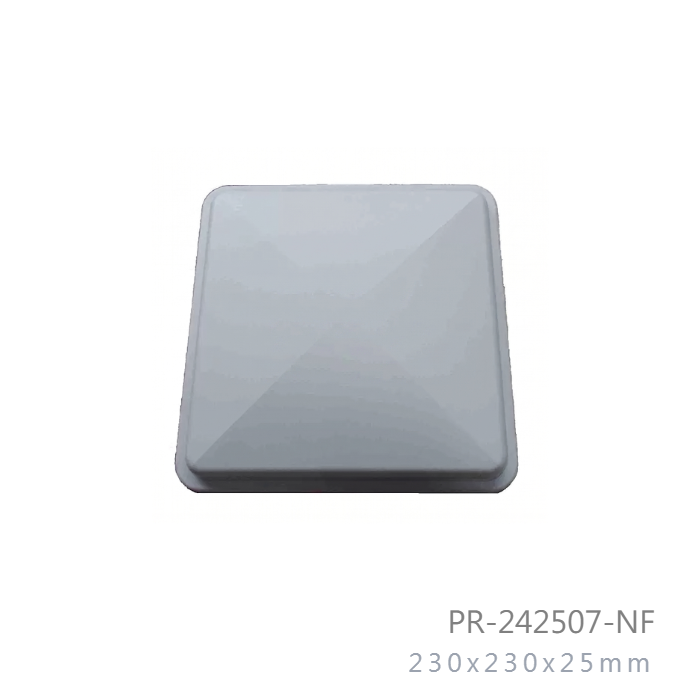

Model No: PR-242507-NF

  • Dimension : L230xW230xD25mm
  • Weight : 160g
  • Connector : N-Female
  • Beam-width : RHCP 70deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • Point to Point
  • Bluetooth
  • Public Wireless Bridge
  • WiFi, RFID
  • Wireless Video Systems
  • Circularly Polarized

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Return Loss (LOW)

15db

Antenna Type

Patch Type

Gain

7 dBi

Polarization

Circularly RHCP

Maximum Power

5 Watts

RHCP Beam-width

70 Deg

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

180 g

Accessories (G.W)

170 g

Wind Survival

Greater than 150MPH

Operating Temperature

-40 to +80

Radom Material

ABS

Parts Material

Aluminum

Mount Adjustment

0-30deg

Mounting

Stainless Steel And Aluminum
