High-Frequency Precision Solutions

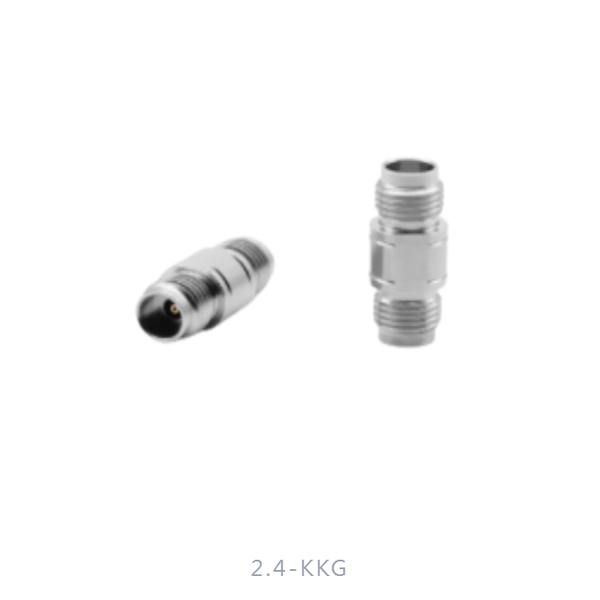

2.4mm Female to 2.4mm Female Precision Adapter (2.4-KKG)
Professional high-frequency measurement grade adapter designed for millimeter-wave applications, ensuring peak signal integrity and stability up to 50 GHz.
Electrical Specifications
| Frequency Range | DC – 50 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications
| Model Name | 2.4-KKG |
| Connector Interface | 2.4mm Female to 2.4mm Female |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Tactical Engineering Features
Precision Millimeter-Wave Performance
Engineered with an ultra-low VSWR of 1.20 up to 50GHz, ensuring maximum signal precision for 5G, satellite, and high-speed data measurement.
Industrial-Grade Durability
Designed for professional laboratory use, withstanding over 500 mating cycles while maintaining electrical consistency and mechanical alignment.
Wide Thermal Operating Range
Reliable performance in extreme environments (-55℃ to +165℃), making it a trusted component for aerospace and defense hardware testing.
High Dielectric Strength
Features robust insulation resistance (≥ 5000 MΩ) and high voltage handling to protect sensitive measurement chains during high-frequency testing.
