High-Frequency Precision Solutions

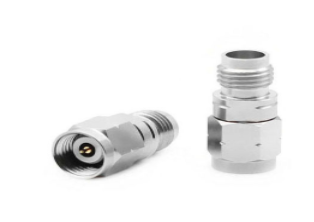

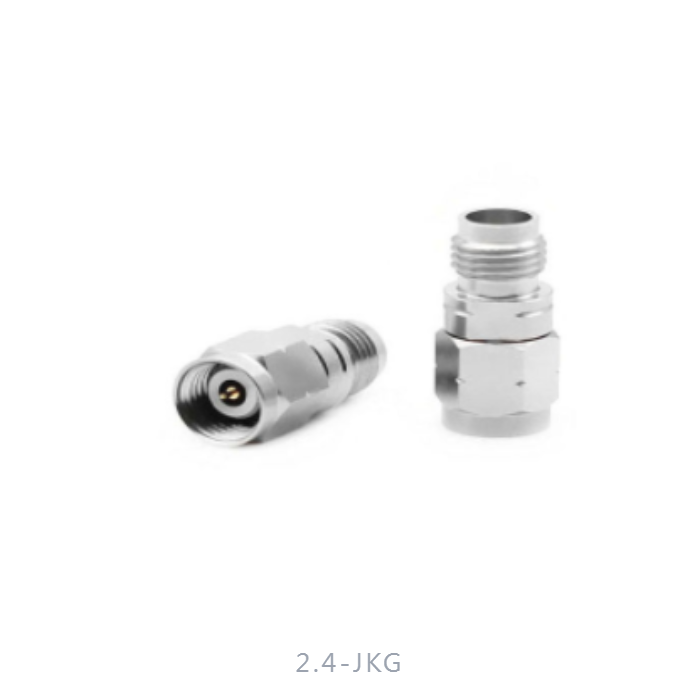

2.4mm Male to 2.4mm Female Precision Adapter (2.4-JKG)
Professional high-precision RF adapter designed for millimeter-wave and high-frequency testing applications, providing exceptionally low VSWR and peak performance stability up to 50 GHz.
Electrical Specifications
| Frequency Range | DC – 50 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications
| Model Name | 2.4-JKG |
| Connector Interface | 2.4mm Male to 2.4mm Female |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Tactical Engineering Features
Superior Signal Precision
Specifically engineered for low reflection loss (VSWR ≤ 1.20:1), maintaining the highest signal integrity for 5G and satellite communication testing.
Extreme Environmental Build
Stable operation across extreme thermal spans from -55℃ up to +165℃, ideal for aerospace, defense, and high-stress thermal chambers.
Mission-Critical Reliability
Industrial-grade construction with passivated stainless steel and gold-plated Becu pin, ensuring 500 cycles of consistent performance.
Millimeter-Wave Optimization
Compliant with GJB standards, this precision-machined interface is optimized for seamless coupling in high-frequency measurement setups.
