Descriptions
High-Frequency Precision Solutions

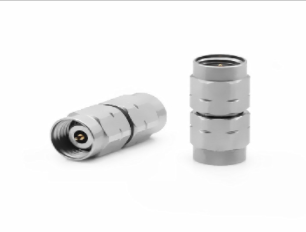

DC to 50GHz 2.4mm Male to 2.4mm Male Precision Adapter
Professional high-precision RF adapter designed for Q-band and millimeter-wave applications. Engineered to provide exceptionally low VSWR and peak performance stability up to 50 GHz in rigorous testing environments.
Electrical Specifications
| Frequency Range | DC ～ 50 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications

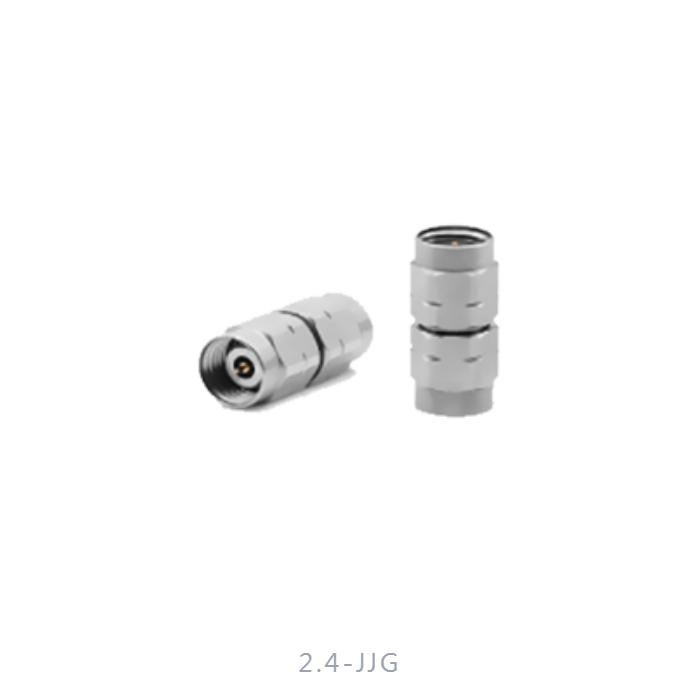

| Model Name | 2.4-JJG |
| Connector Interface | 2.4mm Male to 2.4mm Male |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Tactical Engineering Features
Superior Signal Precision
Specifically engineered for low reflection loss (VSWR ≤ 1.20:1), ensuring the highest signal integrity for 5G and satellite communication testing.
Extreme Environmental Build
Designed to operate reliably from -55℃ up to +165℃, making it ideal for aerospace, defense, and high-stress thermal chamber applications.
Mission-Critical Reliability
Features a 500-cycle durability rating and high dielectric strength, ensuring consistent performance in professional laboratory and industrial settings.
