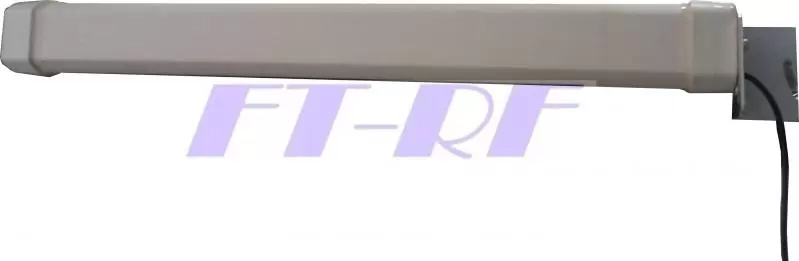

2.5GHz - 2.7GHz 15dbi Yagi Directional Outdoor Antenna2.5GHz - 2.7GHz 15dbi Yagi Directional Outdoor Antenna2.5GHz - 2.7GHz 15dbi Yagi Directional Outdoor Antenna

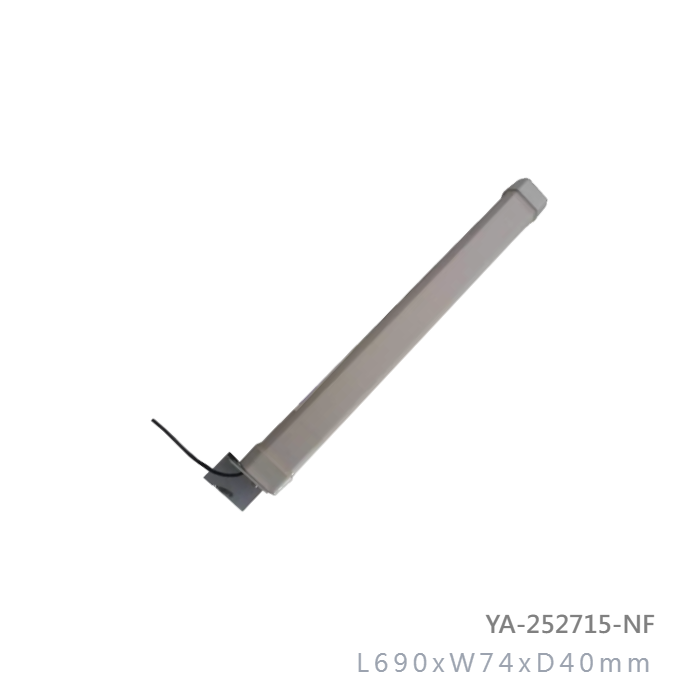

Model No: YA-252715-NF

  • Dimensions: L690xW74xD40mm
  • Weight: 350g
  • Connector: N-Female
  • Beam-width: Horz.32 deg Vert.36 deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz MMDS Band

  • IEEE 802.16,802.20Wirless Lan

  • 8dbi Directional Multipoint applications

  • Point to Point Bridge

  • Pubic Wireless Hotspot

  • WiFi,LTE ,WLAN

  • Wireless Video Systems

  • Yagi antenna or other directional antenna will only pull in signal from one narrow direction

Features:

  • Superior Performance
  • Lightweight (UV ABS)
  • Good appearance design
  • DC Short lightning protection
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mount brackets
  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Yagi Type

Radiation Directional

Gain (Avg)

15 dBi

Polarization

Vertical or Horizontal

Maximum Power

50 Watts

Vertical Beam-width

36 Deg

Horizontal Beam-width

32 Deg

F /B Greater than 25 dB

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Cooper

Connector

60cm Pigtail with the N-Female



Length x Width(MAX)

690 x 74mm

Diameter (MAX)

55mm

Antenna Weight (G.W)

350 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS+Fiberglass

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater then 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
