2.5GHz-2.7GHz 6dBi Outdoor OMNI Directional Antenna2.5GHz-2.7GHz 6dBi Outdoor OMNI Directional Antenna2.5GHz-2.7GHz 6dBi Outdoor OMNI Directional Antenna

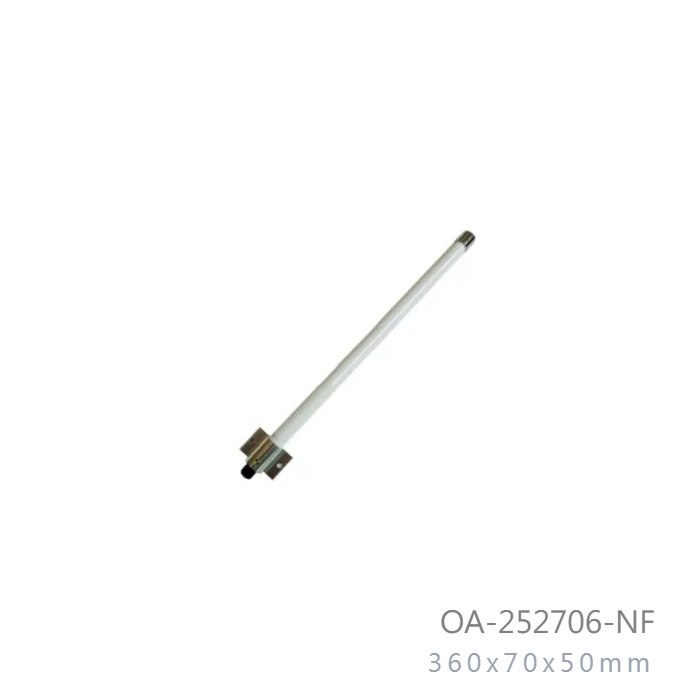

Model No: OA-252706-NF

Datasheet:Download

  • Dimensions: 360x70x50mm
  • Weight: 230g
  • Connector: N-Female
  • Beam-width: Horz.360 Deg Vert.20Deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz Band ,2.6GHz Band

  • 802.16,802.20

  • 6dBi Omni Directional Multipoint applications

  • MMDS

  • Pubic Wireless Hotspot

  • WiMAX ,WiBro

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support are made of aluminum

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

6 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

20 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female



Length (MAX)

360mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

230 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Well Mount
32 to 45mm Mounting Stainless Steel U-Type Screw

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
