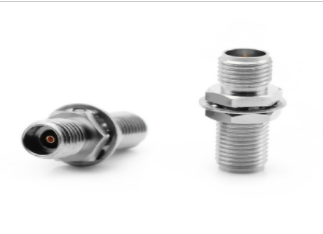

2.92mm Female to Female Bulkhead Adapter

Model No: 2.92-KKYG

Made in Taiwan

Freq. Range:	DC - 40 GHz
Connector:	2.92mm Bulkhead F-F
VSWR:	≤ 1.20 : 1
Durability:	500 Cycles

📄 FULL DATASHEET

Quantity:

INQUIRY

Descriptions

High-Frequency Precision Solutions

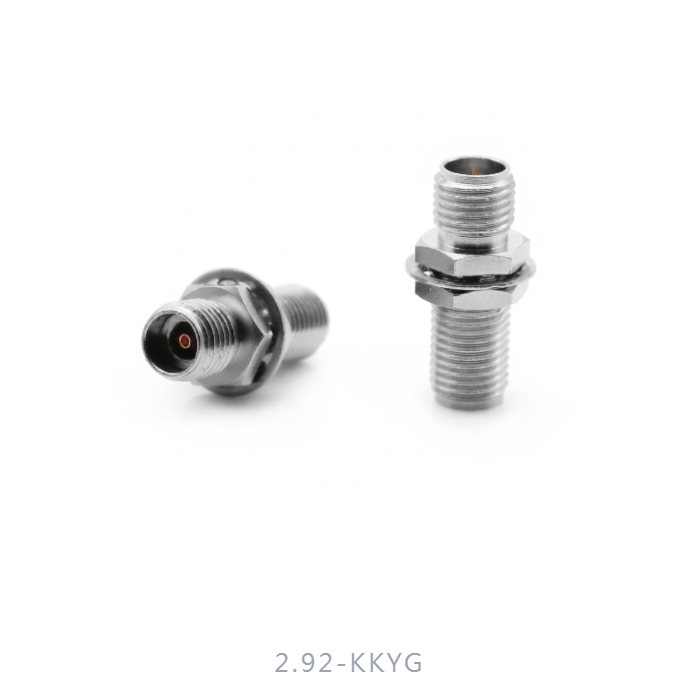

2.92mm Female to 2.92mm Female Bulkhead Precision Adapter (2.92-KKYG)

Professional high-precision bulkhead adapter designed for K-band and millimeter-wave applications, ensuring exceptionally low VSWR and peak performance stability up to 40 GHz.

Electrical Specifications

Frequency Range	DC – 40 GHz
V.S.W.R (MAX)	≤ 1.20 : 1
Impedance	50 Ω
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	1000 V

Mechanical Specifications

Model Name	2.92-KKYG
Connector Interface	2.92mm Female to 2.92mm Female (Bulkhead)
Durability	500 Cycles
Temperature Range	-55℃ ～ +165℃

Tactical Engineering Features

Superior Signal Precision

Specifically engineered for minimal reflection loss (VSWR ≤ 1.20:1), ensuring peak signal integrity for 5G, satellite, and K-band high-frequency testing.

Bulkhead Panel Integration

Precision-machined bulkhead configuration allows for secure installation through enclosures or panels, providing a robust interface for system integration.

Mission-Critical Reliability

Industrial-grade construction with a 500-cycle durability rating and 5000MΩ insulation resistance for high-stress professional and defense settings.

Extreme Environmental Build

Designed to operate reliably across a massive thermal span from -55℃ up to +165℃, suitable for aerospace, defense, and high-stress thermal chamber applications.
