High-Frequency Precision Solutions

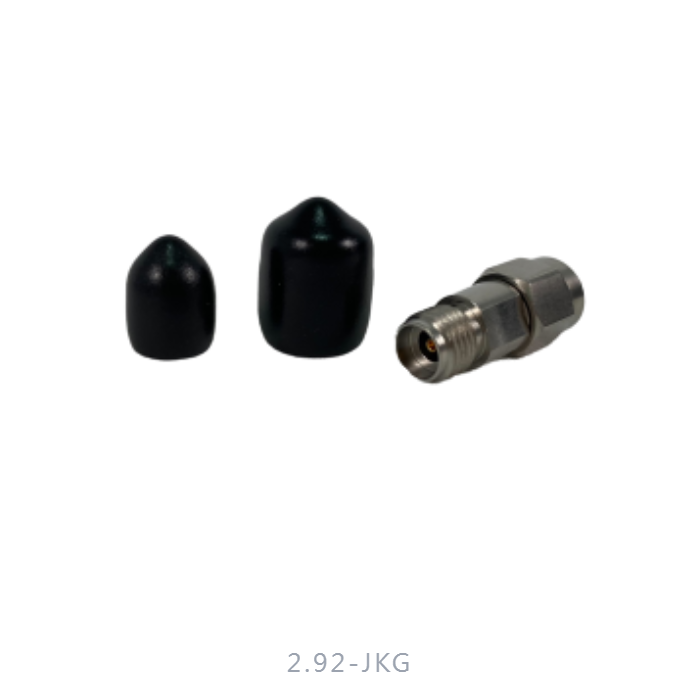

2.92mm Male to 2.92mm Female Precision Adapter (2.92-JKG)
Professional high-precision RF adapter designed for K-band and millimeter-wave applications, ensuring exceptionally low VSWR and peak performance stability up to 40 GHz.
Electrical Specifications
| Frequency Range | DC – 40 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications
| Model Name | 2.92-JKG |
| Connector Interface | 2.92mm Male to 2.92mm Female |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Tactical Engineering Features
Superior Signal Precision
Engineered for low reflection loss (VSWR ≤ 1.20), providing maximum signal integrity for 5G, satellite communication, and high-frequency testing.
Extreme Environmental Build
Stable performance across extreme thermal spans from -55℃ to +165℃, making it ideal for aerospace, defense, and high-stress thermal chamber applications.
Mission-Critical Reliability
Industrial-grade construction with a 500-cycle durability rating and 5000MΩ insulation resistance for professional measurement chains.
Millimeter-Wave Transition
Precision-machined 2.92mm interface optimized for seamless signal coupling in measurement setups where phase stability and low loss are paramount.
