VHF Professional Omni Solutions

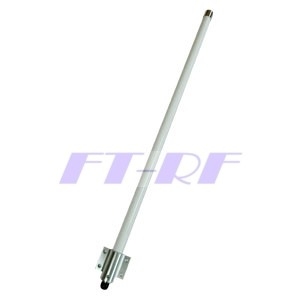

205 - 230 MHz Professional Collinear Omni Antenna
High-performance industrial collinear antenna designed for 360-degree multipoint applications. Optimized for public wireless networks, video systems, and hotspot bridges, providing superior vertical polarization stability across the VHF band.
Electrical Specifications
| Frequency Range | 205 MHz – 230 MHz |
| V.S.W.R (MAX) | ≤ 2.0:1 (≤ 1.5:1 @ 210-220 MHz) |
| Peak Gain | 3 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 250 Watts |
| Antenna Design | 1/4 Wavelength Collinear Dipole (Copper Internal) |
Mechanical & Environmental

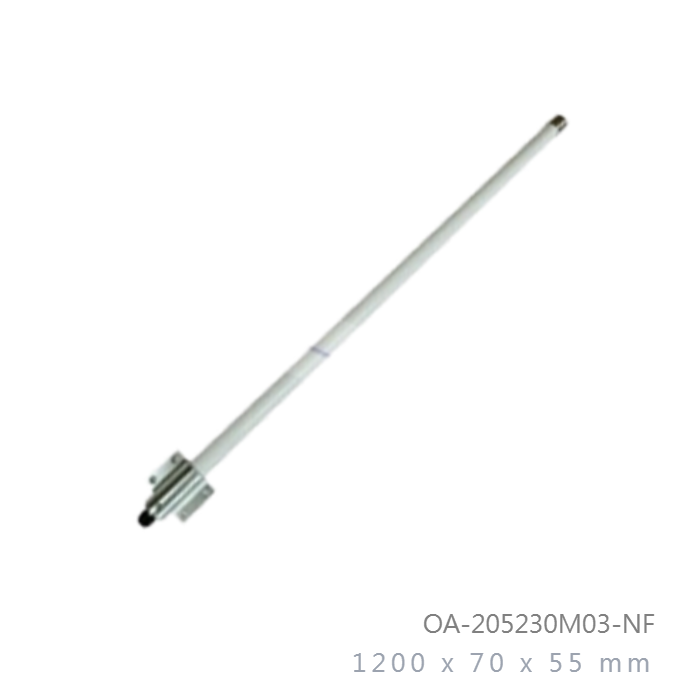

| Dimensions | 1200 x 70 x 55 mm |
| Total Weight (G.W.) | 870 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (UV Resistant) |
| Wind Survival | > 150 MPH |
| Mounting Compatibility | Pole / Wall Mount (Stainless Steel / Aluminum) |
Engineering Core Features
360° Multipoint Coverage
Delivers true omni-directional radiation, making it the ideal solution for public wireless hotspots, MMDS, and multi-user video transmission systems.
Integrated Surge Protection
Features DC-Short lightning protection to safeguard sensitive connected RF equipment against atmospheric electrical discharge and static buildup.
Tactical Adjustability
Includes professional-grade tilt and swivel mast mount brackets, allowing for precise vertical alignment and optimal signal pattern shaping after installation.
Extreme Wind Survival
Rugged fiberglass radome and aluminum support structure are engineered to survive extreme weather conditions, maintaining integrity in wind speeds exceeding 150 MPH.
