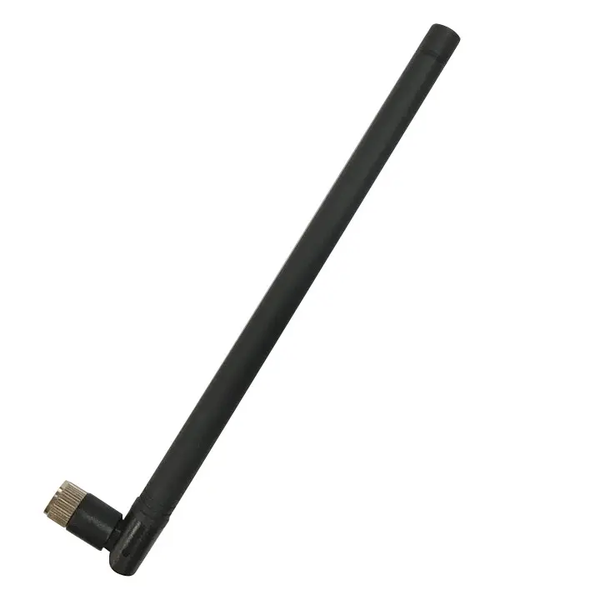

2100MHz-2200MHz 5dBi indoor Rubber SMA-Male OMNI Directional Antenna

Model No: RU-2122M05-SM

Model : RU-2122M05-SM
Dimension :237mm
Weight : 46g
Connector : SMA-Male
Beam-width : Horz.360 Deg Vert.68 Deg

INQUIRY

Applications:

  • 2100MHz-2200MHz 3dbi ISM Band

  • Omni Directional Multipoint applications

  • Point to Multipoint

  • Public Wireless Hotspot

  • 4G.5G

  • Wireless Video Systems

Features:

  • Installed for Collinear Vertical Polarization
  • Indoor antenna for public Hot spots

  • RoHS Compliant


Specifications

Frequency Range

2100MHz - 2200MHz

V.S.W.R (MAX)

2.0: 1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beam-width

68 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Sleeve Dipole

Internal Material

Copper and Coaxial Cable

Connector

SMA-Male

Length (MAX)

237mm

Diameter (MAX)

12.5mm

Antenna Weight (G.W)

46g

Application

Indoor

Radome MaterialRubber

Parts Material

ABS with Copper

Installation Style

180 and 90 Deg rotation

Storage Temperature-5 to +40
Operating Temperature-5 to +40
Operating Humidity

35%~60% non-condensing

Storage Humidity

35%~50% non-condensing

Safety,Emission, and otherCE,FCC,RoHS
