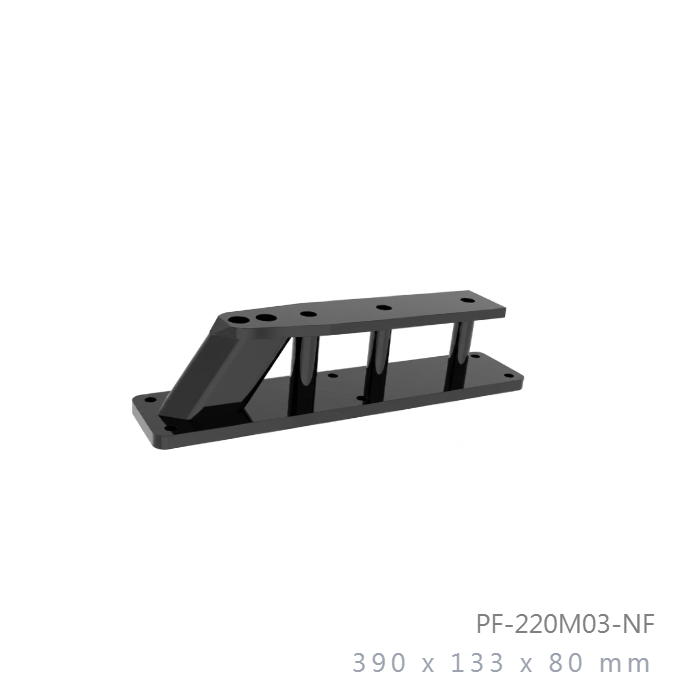

210MHz to 230MHz 3dBi PIFA Omni Directional Professional train Outdoor Antenna210MHz to 230MHz 3dBi PIFA Omni Directional Professional train Outdoor Antenna210MHz to 230MHz 3dBi PIFA Omni Directional Professional train Outdoor Antenna

Model No: PF-220M03-NF

Datasheet:Download

  • Dimension : 390x133x80mm
  • Weight : 2000g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.100 deg
INQUIRY

Applications

  • 210MHz to 230MHz Band
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Outdoor antenna for public
  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant

Frequency Range

220MHz+-10MHz

V.S.W.R (MAX)

2.0 :1

220MHz 1.25:1

Antenna Type

PIFA

Radiation Omni Directional

Gain (Avg)

2.5 dBi (Max 5dBi)

Polarization

Vertical

Maximum Power

500 Watts

Vertical Beam-width

100 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Hight Quality PIFA

Internal Material

Copper

Connector

N-Female

Length (MAX)

390mm

Diameter (MAX)

133 x 80mm

Antenna Weight (G.W)

1800 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

no

Parts Material

6061 Aluminum

Mount Style Install Flat(Need Ground)
Mounting M10 Stainless Steel

Wind Survival

Greater than 300MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety,Emission and other

CE, FCC, RoHS
