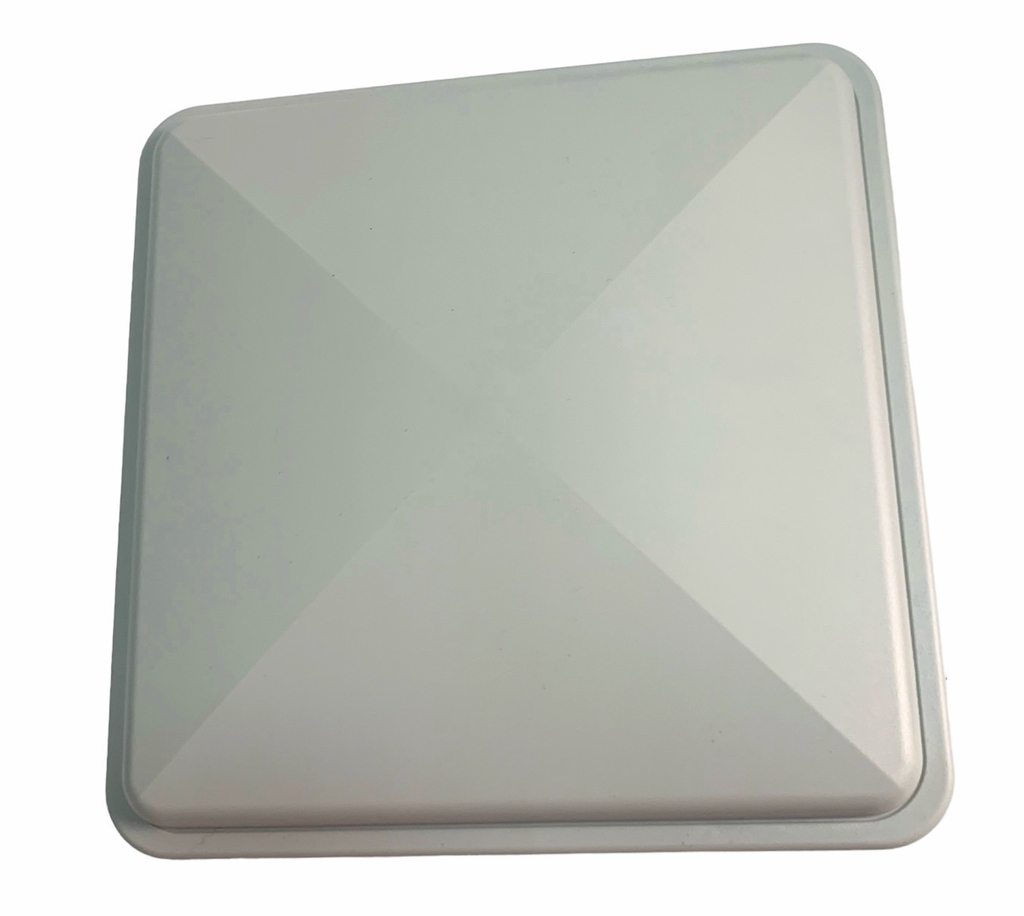

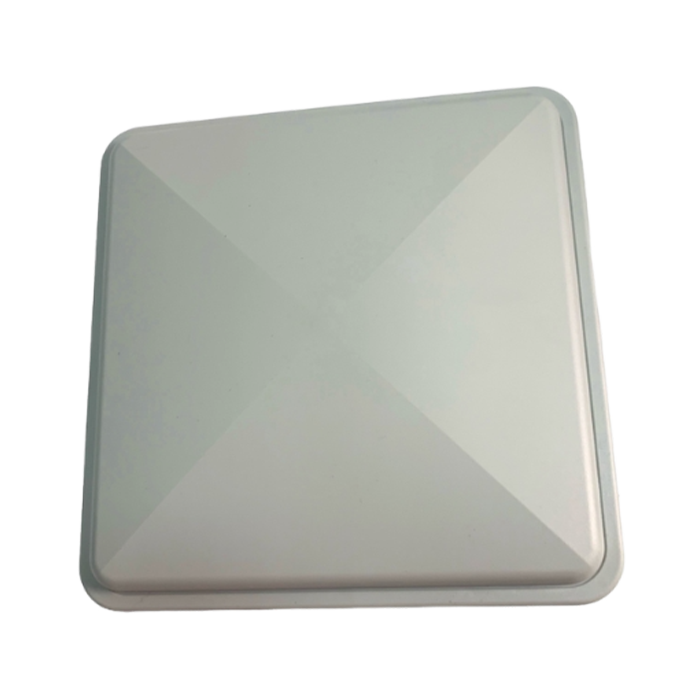

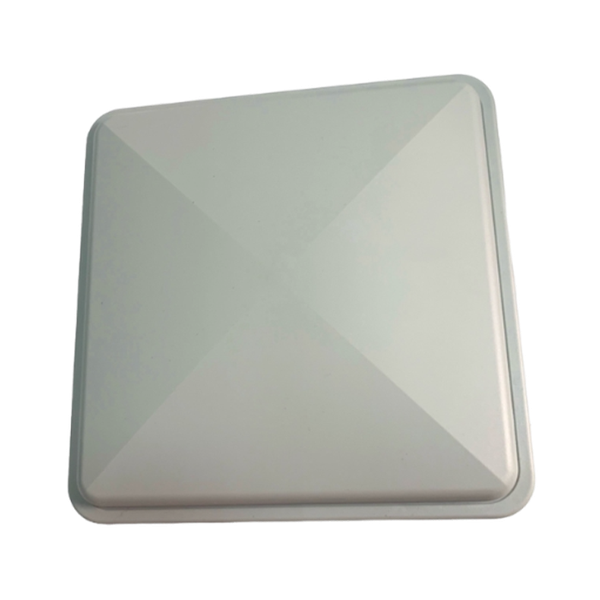

2.2GHz to 2.3GHz 13dbi Panel Directional Outdoor Antenna

Model No: PA-222313-NF

Datasheet:Download

  • Dimension : L230xW230xD25mm
  • Weight : 370g
  • Connector : N-Female
  • Beam-width : Horz.38 deg Vert.38 deg
INQUIRY

Applications:

  • 2.2GHz-2.3GHz Band
  • Directional Multipoint applications
  • Public Wireless
  • WiMAX,WLAN
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public

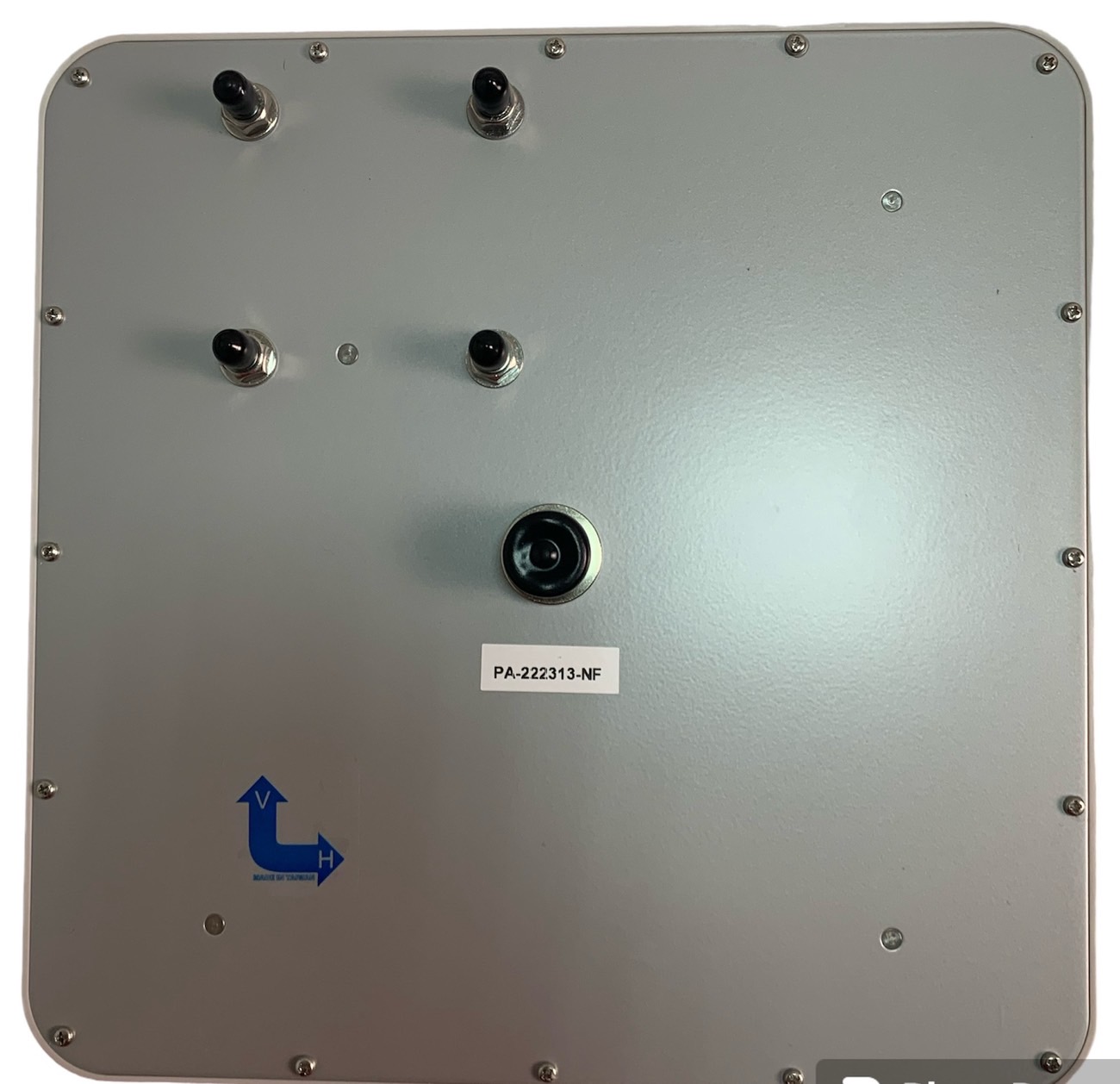

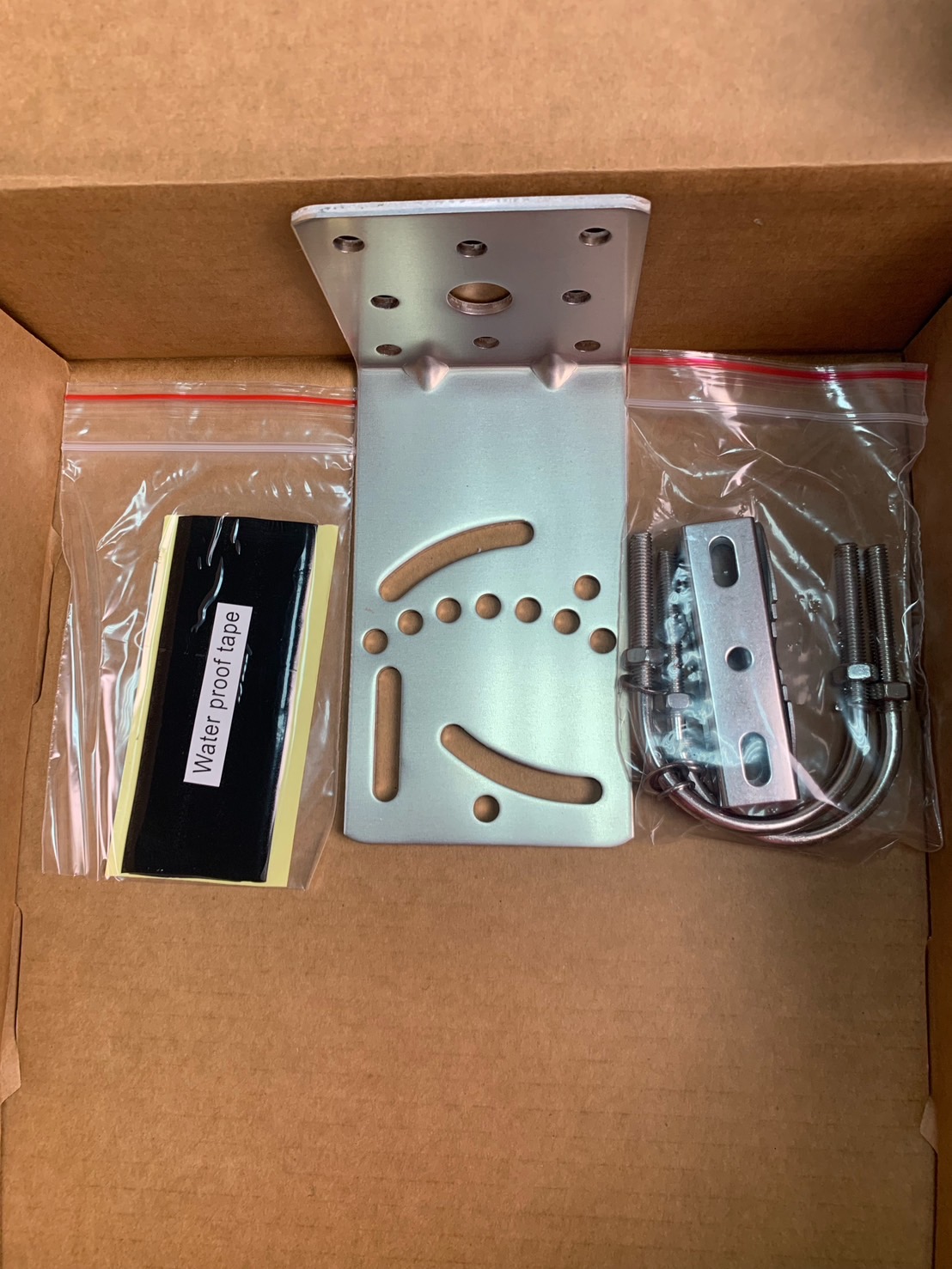

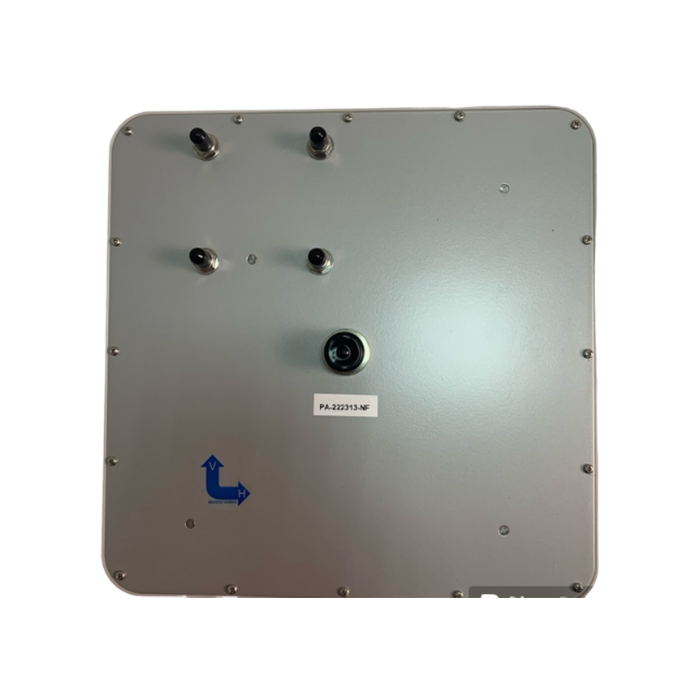

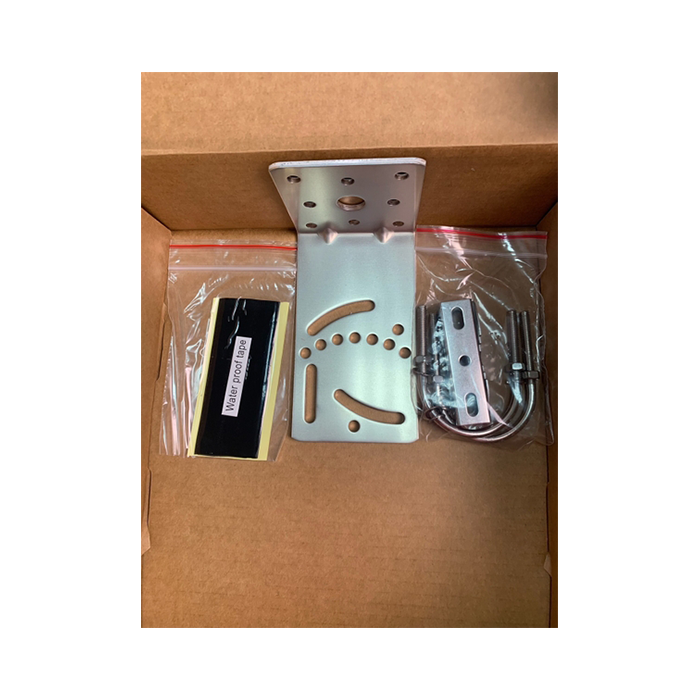

  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant

Frequency Range

2200MHz - 2300MHz

V.S.W.R (Avg)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

13 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

38 Deg

F /B Greater than 20 dB

Impedance

50 Ohm

Antenna Design

2x2 Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

370 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment +- 30 deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety,Emission and other

RoHS
