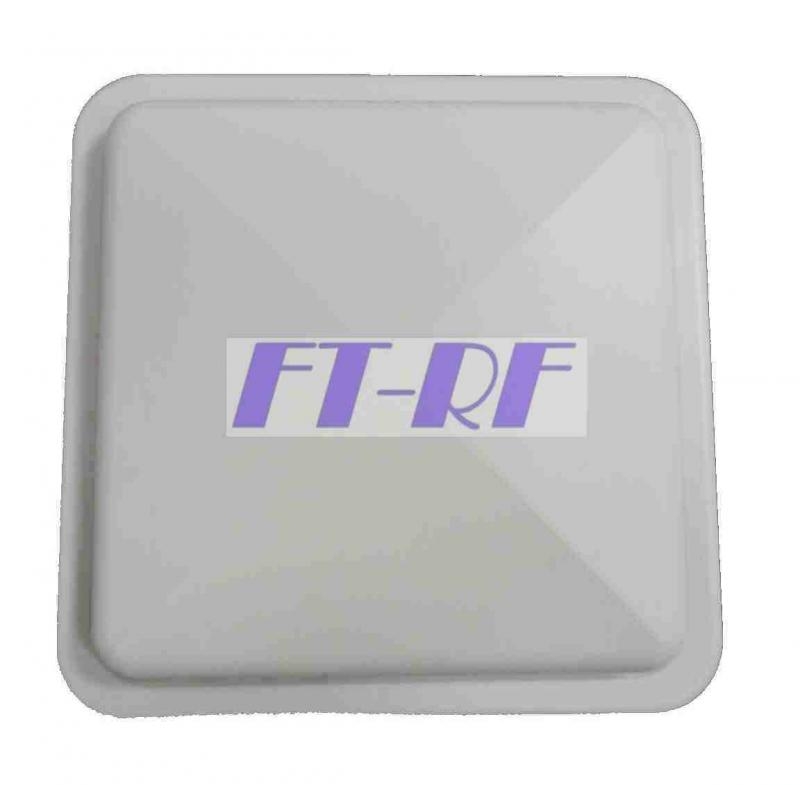

3.3 to 3.8GHz 12dbi Panel Antenna3.3 to 3.8GHz 12dbi Panel Antenna3.3 to 3.8GHz 12dbi Panel Antenna

Model No: PA-333812-NF

Datasheet:Download

  • Dimensions: 230x230x21mm
  • Weight: 150g
  • Connector: N-Female
  • -3dB Beamwidth: Horz.31deg Vert.57deg
INQUIRY

Applications:

  • 3.3GHz-3.8GHz Band

  • IEEE 802.16 System

  • 13dBi Directional Multipoint applications

  • Point to Point Bridge / MMDS

  • Public Wireless

  • WiMAX, WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

3300MHz - 3800MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

12 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beamwidth (AVG)

57 Deg

Horizontal Beamwidth (AVG)

31 Deg

FBR (AVG) 27 dB

Impedance

50 Ohm

Antenna Design

 Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

230x230mm

Diameter (MAX)

21mm

Antenna Weight (G.W)

150 g

Accessories (G.W)

180 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
