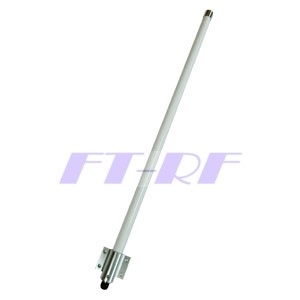

3.3 to 3.8GHz 15dBi OMNI Antenna3.3 to 3.8GHz 15dBi OMNI Antenna3.3 to 3.8GHz 15dBi OMNI Antenna

Model No: OA-333815-NF

Datasheet:Download

  • Dimensions: 1094x70x50mm
  • Weight: 710g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.9deg
INQUIRY

Applications:

  • 3.5GHz Band Applications

  • IEEE 802.16e Applications

  • Omni Directional Multipoint Applications

  • Mobile WiMAX , SOFDMA, Multipoint Applications

  • Wireless LAN systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Antenna support is easily adjusted up and down

  • Behind and support are made of aluminum

  • Outdoor antenna for public spots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

3300MHz - 3800MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

15 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

9 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1094 mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

710 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
32 to 45mm Mounting Stainless Steel U-Type Screw

Wind Survival

Greater than 120MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
