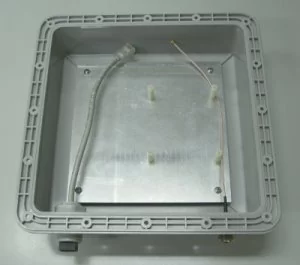

3.3GHz-3.8GHz 13dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna3.3GHz-3.8GHz 13dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna3.3GHz-3.8GHz 13dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna

Model No: PAD-333813BA-XXXX-HV

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Port1:Horz.25 deg Vert.24 deg
  • Port2 Horz.24 deg Vert.23 deg
INQUIRY

Applications:

  • 3.3GHz-3.8GHz WiMAX Band

  • IEEE 802.16d

  • 13dBi Directional Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Antenna Jumper can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiFi,RFID ,WLAN

  • Wireless Video Systems

  • Dual Polarizational Beam-With: Vertical and Horizontal

  • WiMAX 3.5GHz 2T2R MINO

  • Two Port Antenna Connectors with cable

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating
  • RoHS Compliant



Frequency Range

3300MHz - 3800MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13 dBi

Polarization

Vertical and Horizontal

Maximum Power

2 Watts

Vertical Beam-width

Port1:24 deg

Port2:23 deg

Horizontal Beam-width

Port1:25 deg

Port2:24 deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Dual Polarization

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other x2
Connector I-PAX or MMCX or Other x2

Waterproof RJ45

20cm RJ45 Male

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

Inside Length x Width(Least) 190 x 170mm (User Space)
Inside Diameter(Least) 45mm (User Space)

Antenna Weight (G.W)

900 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment Up or Down 20deg
Mount Pole 32mm to 50mm

Wind Survival

Greater then 180MPH

Storage Temperature -20 to +60
Operating Temperature -20 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE

MODEL cable length Connector

PAD-333814BA-RSM17-HV

RG178 For 17cm x2

RP-SMA-Male x2

PAD-333814BA-0SM17-HV

RG178 For 17cm x2

SMA-Male x2

PAD-333814BA-RMM17-HV

RG178 For 17cm x2

R/A MMCX x2

PAD-333814BA-RMC17-HV

RG178 For 17cm x2

R/A MCX x2

PAD-333814BA-RRS17-HV

RG178 For 17cm x2

R/A RP-SMA x2

PAD-333814BA-0IX17-HV

1.3mm For 17cm x2

I-PAX x2

PAD-333814BA-RSM21-HV

RG178 For 21cm x2

RP-SMA-Male x2

PAD-333814BA-0SM21-HV

RG178 For 21cm x2

SMA-Male x2

PAD-333814BA-RMM21-HV

RG178 For 21cm x2

R/A MMCX x2

PAD-333814BA-RMC21-HV

RG178 For 21cm x2

R/A MCX x2

PAD-333814BA-RRS21-HV

RG178 For 21cm x2

R/A RP-SMA x2

PAD-333814BA-0IX21-HV

1.3mm For 21cm x2

I-PAX x2
