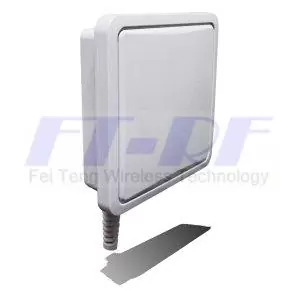

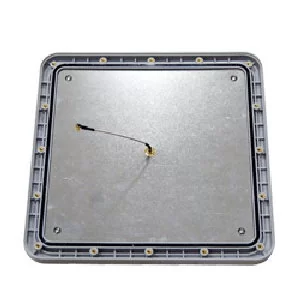

3.3GHz-3.8GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna3.3GHz-3.8GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna3.3GHz-3.8GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

Model No: PA-333814BA-XXXX

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Horz.28 deg Vert.28 deg
INQUIRY

Applications:

  • 3.3GHz-3.8GHz WiMAX Band

  • IEEE 802.16x Wireless Lan

  • 14dBi Directional Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Antenna Jumper can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX / WiFi, WLAN /MIMO /

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

3300MHz - 3800MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

14 dBi

Polarization

Vertical or Horizontal

Maximum Power

2 Watts

Vertical Beam-width

28 Deg

Horizontal Beam-width

28 Deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other
Connector I-PAX or MMCX or Other

Waterproof RJ45

20cm RJ45 Male

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

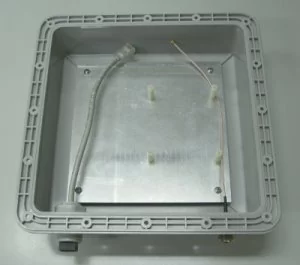

Inside Length x Width(Least) 190 x 170mm (User Space)
Inside Diameter(Least) 45mm (User Space)

Antenna Weght (G.W)

900 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount

Paets Material

Aluminum

Mounting Stanless Steel
Mount Adjustment Up or Down 20deg
Mount Pole 32mm to 50mm

Wind Survival

Greater then 180MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WCCC

MODEL cable length Connector

PA-333814BA-RSM17

RG178 For 17cm

RP-SMA-Male

PA-333814BA-0SM17

RG178 For 17cm

SMA-Male

PA-333814BA-RMM17

RG178 For 17cm

R/A MMCX

PA-333814BA-RMC17

RG178 For 17cm

R/A MCX

PA-333814BA-RRS17

RG178 For 17cm

R/A RP-SMA

PA-333814BA-0IX17

1.3mm For 17cm

I-PAX

PA-333814BA-RSM21

RG178 For 21cm

RP-SMA-Male

PA-333814BA-0SM21

RG178 For 21cm

SMA-Male

PA-333814BA-RMM21

RG178 For 21cm

R/A MMCX

PA-333814BA-RMC21

RG178 For 21cm

R/A MCX

PA-333814BA-RRS21

RG178 For 21cm

R/A RP-SMA

PA-333814BA-0IX21

1.3mm For 21cm

I-PAX
