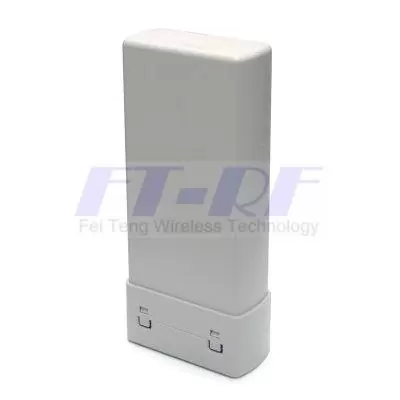

Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
3.3GHz-3.8GHz Wimax Band
-
IEEE 802.16d Wireless Lan
-
9.5dBi Directional Multipoint applications
-
Point to Point Bridge
-
SOC CPE User
-
Antenna Jumper can be switched to Equipment Connection
-
Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.
-
Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.
-
WiMAX ,WLAN
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight (UV ABS)
-
Good appearance design
-
DC Short lightning protection
-
Outdoor antenna for public Hot spots
-
Includes tilt and swivel mast mount brackets
- IP65 Waterproof rating
-
RoHS Compliant
|
Frequency Range |
3300MHz - 3800MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain |
9.5 dBi |
|
Polarization |
Vertical or Horizontal(Optional) |
|
Maximum Power |
2 Watts |
|
Vertical Beam-width |
38 Deg |
|
Horizontal Beam-width |
62 Deg |
| FBR | Greater than 18 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
1(1x2) Patch Array |
|
Internal Material |
Taiwan FR4 |
| RF Cable | RG178 / RG174/ other |
| Connector | I-PAX or MMCX or Other |
|
Waterproof RJ45 |
20cm RJ45 Male |
|
Length x Width(MAX) |
265 x 120mm |
|---|---|
|
Diameter (MAX) |
50mm |
| Inside Length x Width(Least) | 150 x 70mm (User Space) |
| Inside Diameter(Least) | 25mm (User Space) |
|
Antenna Weight (G.W) |
400 g |
|
Accessories (G.W) |
200 g |
| Application | Indoor / Outdoor |
|
Radome Material |
Light Gray ABS |
| Waterproof Box | Light Gray ABS |
| Mount Style | Pole Mount and Wall Mount |
| Mount Pole | 32mm to 50mm |
|
Wind Survival |
Greater then 180MPH |
| Storage Temperature | -20 to +60 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
| MODEL | cable length | Connector |
|
PA-333810BA-RSM17 |
RG178 For 17cm |
RP-SMA-Male |
|
PA-333810BA-0SM17 |
RG178 For 17cm |
SMA-Male |
|
PA-333810BA-RMM17 |
RG178 For 17cm |
R/A MMCX |
|
PA-333810BA-RMC17 |
RG178 For 17cm |
R/A MCX |
|
PA-333810BA-RRS17 |
RG178 For 17cm |
R/A RP-SMA |
|
PA-333810BA-0IX17 |
1.3mm For 17cm |
I-PAX |
|
PA-333810BA-RSM21 |
RG178 For 21cm |
RP-SMA-Male |
|
PA-333810BA-0SM21 |
RG178 For 21cm |
SMA-Male |
|
PA-333810BA-RMM21 |
RG178 For 21cm |
R/A MMCX |
|
PA-333810BA-RMC21 |
RG178 For 21cm |
R/A MCX |
|
PA-333810BA-RRS21 |
RG178 For 21cm |
R/A RP-SMA |
|
PA-333810BA-0IX21 |
1.3mm For 21cm |
I-PAX |
