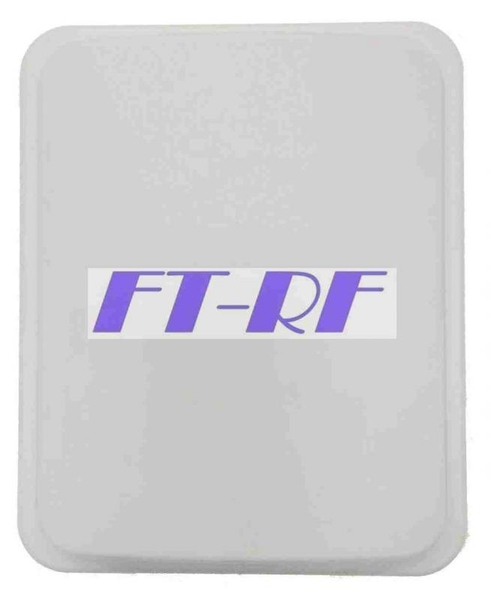

3.4 to 3.7GHz 13dBi 2x2 Dual Polarized Vertical and Horizontal Panel Outdoor Antenna

Model No: PV-343713-NF

Datasheet:Download

Model: PV-343713-NF
Dimensions: L180xW150xH25mm
Weight: 0.2 KG
Connector: N-Female
Beam-width: Horz.Port1: 34 Deg / Port2: 30 Deg
Beam-width: Vert.Port1: 29 Deg / Port2: 27 Deg

INQUIRY

Applications:

  • 3.4GHz-3.7GHz Band

  • IEEE 802.16x,802.20x,Wireless Lan

  • Directional Multipoint applications 2 x 2 TX/RX

  • MIMO 2x2 Dual Port 13dBi

  • Public Wireless Point to Point

  • WiMAX,WiBro

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

3400MHz - 3700MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13 dBi

Polarization

Dual Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

Port1: 29 Deg / Port2: 27 Deg

Horizontal Beam-width

Port1: 34 Deg / Port2: 30 Deg

FBR Greater than 24 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

180 x 150mm

Height (MAX)

25mm

Antenna Weight (G.W)

220 g

Accessories (G.W)

400 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
