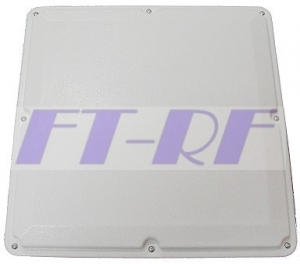

3.4 to 3.7GHz 18dBi Dual Polarized Vertical and Horizontal Panel Antenna3.4 to 3.7GHz 18dBi Dual Polarized Vertical and Horizontal Panel Antenna3.4 to 3.7GHz 18dBi Dual Polarized Vertical and Horizontal Panel Antenna

Model No: PV-343718-NF

  • Dimensions: L310xW310xH30mm
  • Weight: 1.25 KG
  • Connector: N-Female
  • Beam-width: Horz.Port1: 18 Deg / Port2: 17 Deg
  • Beam-width: Vert.Port1: 17 Deg / Port2: 16 Deg
INQUIRY
  • 3.4GHz-3.7GHz Band

  • IEEE 802.16x, 802.20x, Wireless Lan

  • Directional Multipoint applications 2 x 2 TX/RX

  • MIMO 2x2 Dual Port 18dBi

  • Pubic Wireless Point to Point

  • WiMAX, WiBro

  • Wireless Video Systems

Frequency Range

3400MHz - 3700MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

18 dBi

Polarization

Dual Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

Port1: 18 Deg / Port2: 17 Deg

Horizontal Beam-width

Port1: 17 Deg / Port2:16 Deg

FBR Greater than 25 dB
Cross Polarization Greater than -22 dB

Impedance

50 Ohm

Antenna Design

16(4x4) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

310 x 310mm

Height (MAX)

30mm

Antenna Weight (G.W)

950 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment +-28 deg

Wind Survival

Greater then 120MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS. CE, FCC. WEEE
