Descriptions

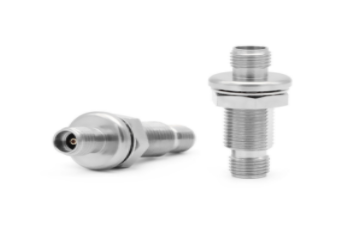

3.5mm Bulkhead Precision Adapter

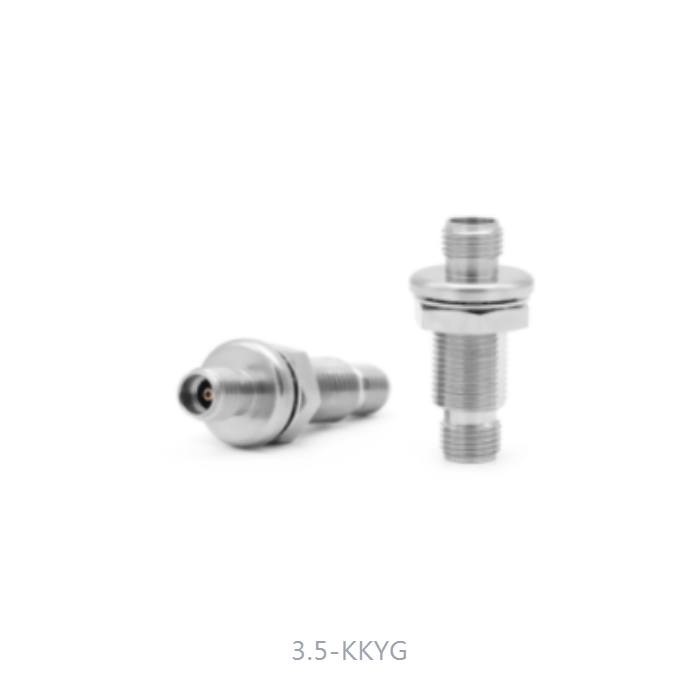

Model: 3.5-KKYG | DC - 33 GHz | Female to Female
The 3.5-KKYG is a high-performance millimeter-wave bulkhead adapter designed for precision signal coupling through equipment panels. Optimized for an ultra-wide frequency range up to 33 GHz, it ensures minimal signal reflection and insertion loss with an industry-leading VSWR profile. This adapter is a critical component for laboratory instrumentation, telecommunications enclosures, and advanced RF system integration where Signal Integrity must be maintained across secure panel-mount transitions.
Core Electrical Specifications
| Frequency Range | DC to 33 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | 3.5mm Female to 3.5mm Female |
| Mounting Type | Bulkhead (Panel Mount) |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | Passivated Stainless Steel |
Key Tactical & Lab Features
Millimeter-Wave Precision
Ensures ultra-low VSWR of ≤ 1.20 across the entire 33 GHz spectrum, providing reliable measurements for 5G NR, Ka-band, and high-speed data testing.
Bulkhead Mounting Design
Specifically engineered for panel-mount applications, providing a secure, grounded signal transition through chassis walls for satellite and telecommunications hardware.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress environmental chambers.
Superior Signal Integrity
Features a precision-machined air dielectric interface to eliminate signal distortion and ensure phase-stable performance at ultra-high frequencies.
