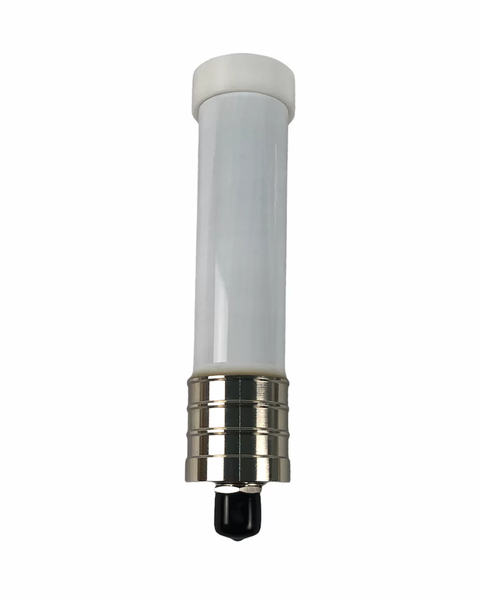

3 GHz to 6 GHz 3dbi Omni Directional Outdoor Antenna3 GHz to 6 GHz 3dbi Omni Directional Outdoor Antenna3 GHz to 6 GHz 3dbi Omni Directional Outdoor Antenna

Model No: OA-0306G03A-NF

Datasheet:Download

  • Dimension : 160x42mm
  • Weight : 339g
  • Connector : N-Male
  • Beam-width : Hor. 360deg- Ver. 35deg
INQUIRY

Applications:

  • 3GHz - 6GHz Band
  • 3dBi Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant



Frequency Range

3 GHz - 6GHz

V.S.W. R

2.0: 1

Antenna Type

Collinear

Radiation

Omni Directional

Gain

3 dbi

Antenna Factor

37 – 45 dB/m

Polarization

Vertical or Horizontal

Maximum Power

100W

Vertical Beamwidth

35 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Cooper

Connector

N-Female



Length (MAX)

160 mm

Diameter (MAX)

42 mm

Antenna Weight (G.W)

 339 g

Accessories (G.W)

112 g

Application

Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount/ Wall Mount

Mounting

Stainless Steel

Wind Survivor

Greeter than 150mph

Storage Temperature

-40 to +80° C

Operating Temperature

-40 to +60° C

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, WEEE, CE, FCC
