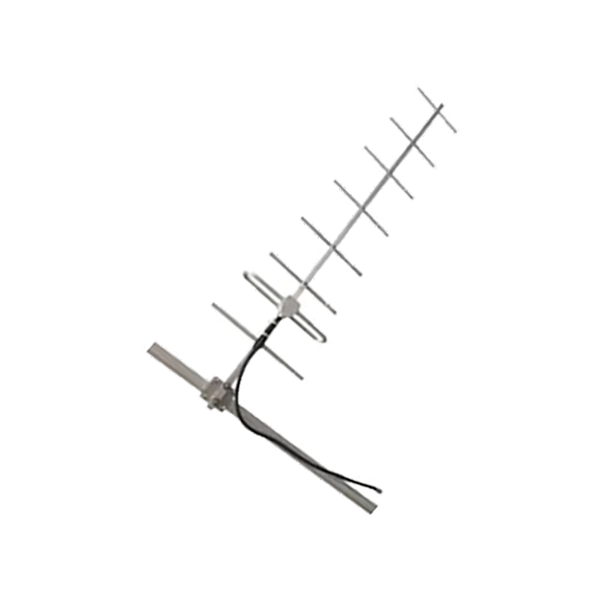

380 MHz to 420 MHz 12dBi Yagi Directional Antenna380 MHz to 420 MHz 12dBi Yagi Directional Antenna380 MHz to 420 MHz 12dBi Yagi Directional Antenna

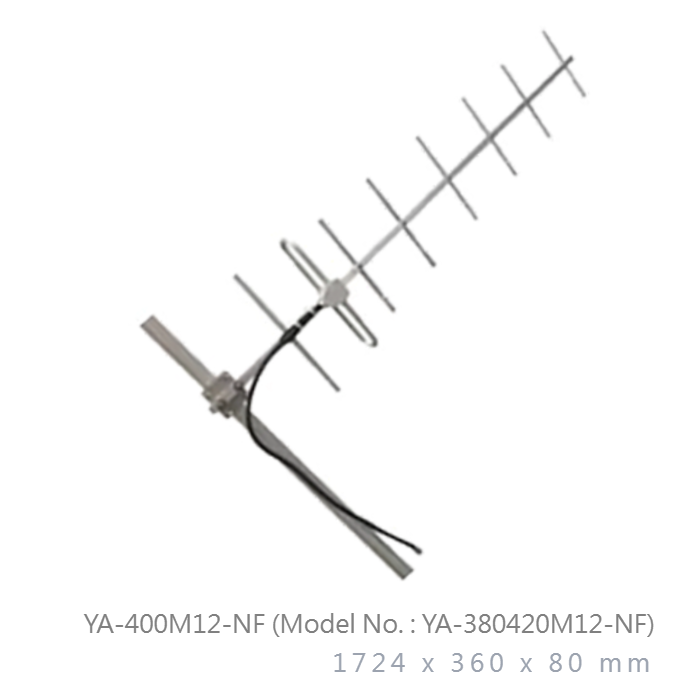

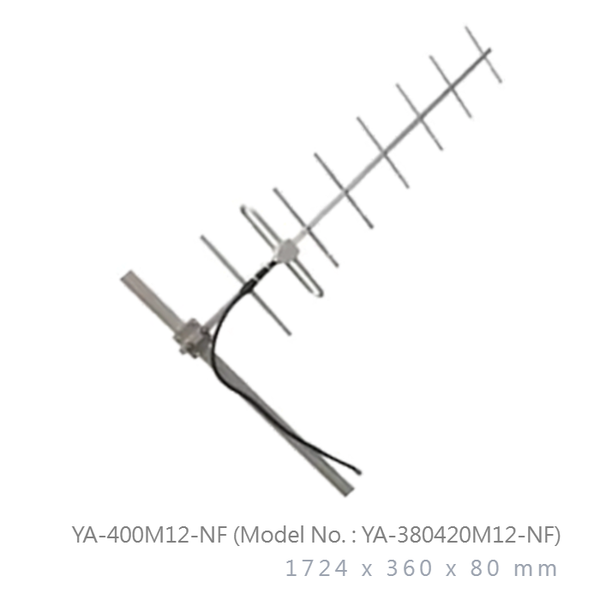

Model No: YA-400M12-NF (Model No. : YA-380420M12-NF)

Datasheet:Download

Original Model No: YA-380420M12-NF

Dimension : 1724x360x80mm
Weight : 900g
Connector : N-Female
Beam-width : Horz.37 deg Vert.59 deg



INQUIRY

Applications:

  • 380MHz to 420MHz with 12dBi Yagi Antenna
  • Offering excellent utilization of VHF&UHF radio spectrum
  • Directional and multipoint applications
  • N-female connector
  • Public Wireless Hotspot
  • Mobile, RFID, LTE, 4G
  • Wireless Video Systems

Features:

  • Superior performance
  • DC Short lightning protection
  • Ensuring reliable operation in a harsh environment.
  • Low VSWR
  • High gain and quality standard
  • RoHS Compliant

Frequency Range

380MHz to 420MHz

V.S.W.R (AVG)

2.0 :1

Antenna Type

Yagi directional

Radiation

Directional

Gain (AVG)

12dBi

Polarization

Vertical or Horizontal

Maximum Power

500 Watts

Vertical Beam-width

 59 Deg

Horizontal Beam-width

 37 Deg

Impedance

50 Ohm

Antenna Design

Folded Dipole Balun Yagi

Connector

N-Female with cable 1M

Length

1724 mm

Diameter

360 x 80 mm

Antenna Weight

900 g

Accessories

100 g

Radome Material

ABS+PC

Parts Material

Aluminum

Mount Style

1.5 inch Pole Mount

Mounting

Stainless Steel

Wind Survival

Greater than 120MPH

Operating Temperature

-40deg to +60deg

Storage Temperature

-20deg to +80deg

Environmental Conditions

Outdoor/Indoor

Operating Relative Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
