UHF Professional Omni Solutions

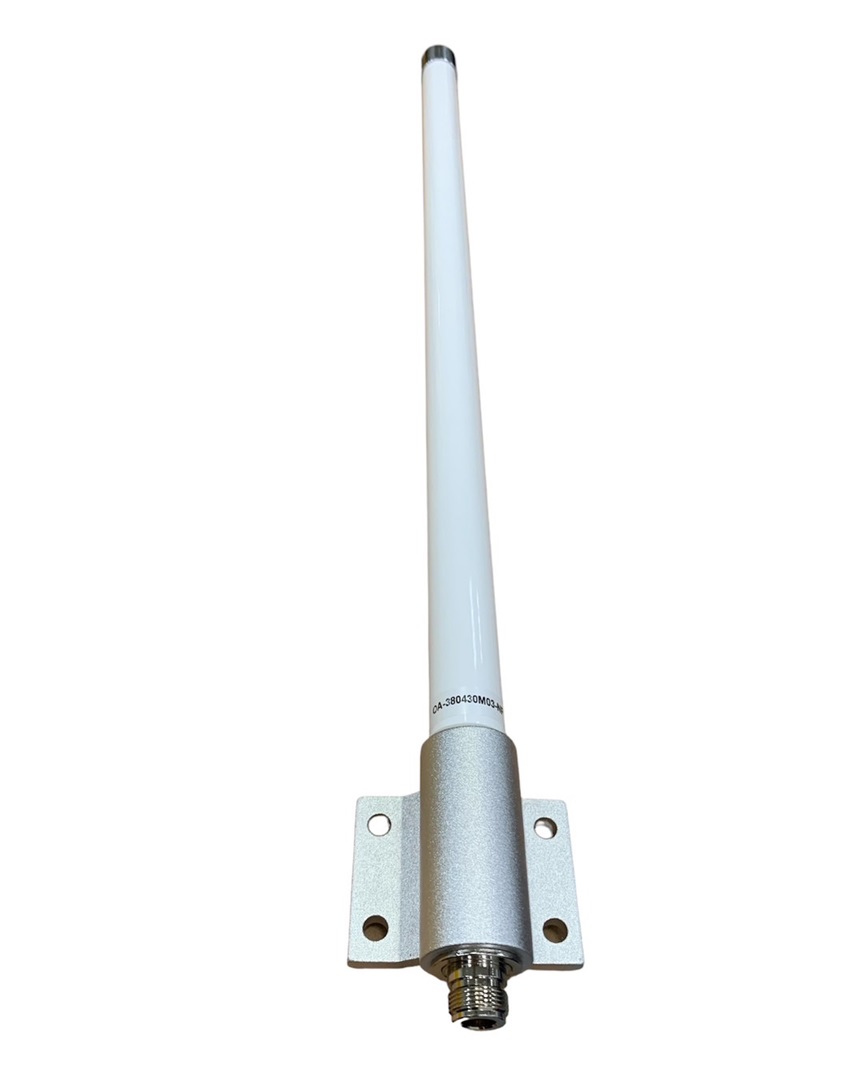

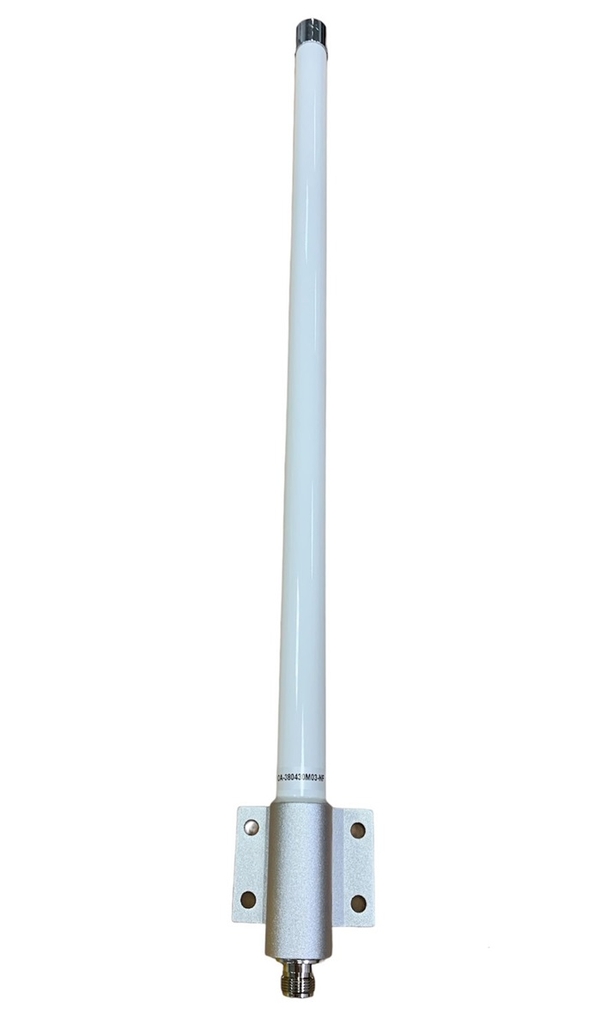

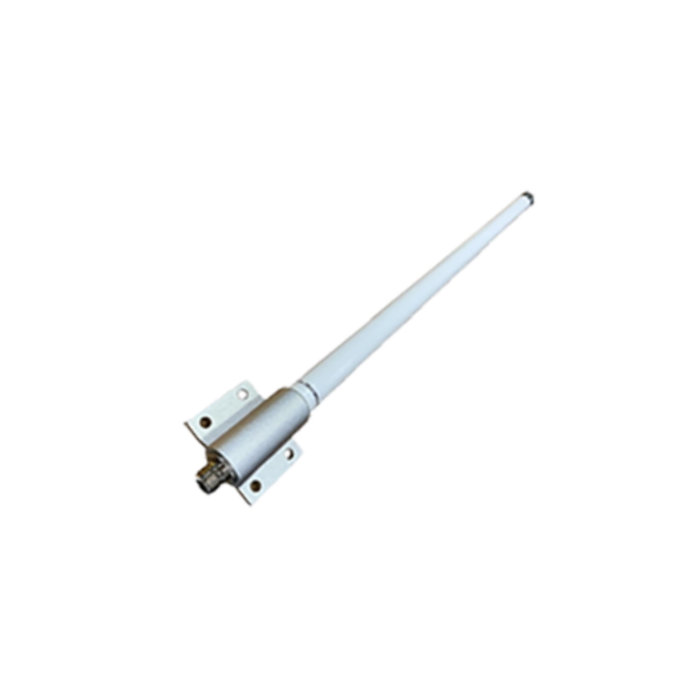

380 - 430 MHz Professional Collinear Omni Antenna
High-performance industrial collinear antenna designed for 360-degree multipoint distribution in the UHF band. Optimized for public wireless infrastructure, LTE/4G applications, and wireless video systems, delivering consistent signal stability and spectral efficiency.
Electrical Specifications
| Frequency Range | 380 MHz – 430 MHz |
| V.S.W.R (MAX) | ≤ 2.0:1 (≤ 1.5:1 @ 390-415 MHz) |
| Peak Gain | 3 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 250 Watts |
| Antenna Design | 1/4 Wavelength Collinear Dipole (Copper Internal) |
Mechanical & Environmental

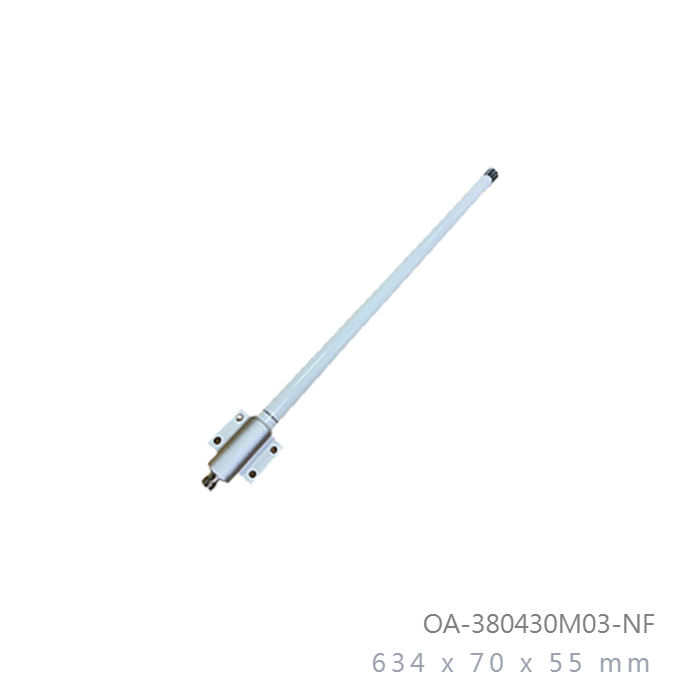

| Dimensions | 634 x 70 x 55 mm |
| Total Weight (G.W.) | 552 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (UV Resistant) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
UHF Spectrum Excellence
Precision-engineered to offer superior utilization of the 380-430MHz spectrum, ideal for multipoint public wireless hotspots and mission-critical 4G/LTE mobile connectivity.
Integrated Surge Protection
Features built-in DC-Short lightning protection to safeguard sensitive connected RF equipment from atmospheric electrical discharge and static buildup in outdoor environments.
Wide Vertical Beam-width
A broad 65-degree vertical beam pattern combined with a 360-degree horizontal spread ensures reliable signal penetration for indoor and outdoor multipoint bridge links.
Extreme Industrial Build
Constructed with a rugged fiberglass radome and aluminum components, designed to maintain peak performance in harsh environments with wind speeds exceeding 150 MPH.
