UHF High-Gain Omni Solutions

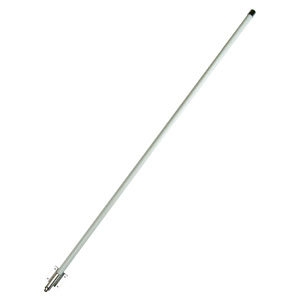

380 - 430 MHz Professional High-Gain Collinear Antenna
Professional industrial-grade high-gain collinear antenna array designed for 360-degree wireless distribution. Featuring a 1.35m fiberglass radome and copper internal dipole array, it is optimized for high-power public wireless infrastructure and mission-critical video systems.
Electrical Specifications
| Frequency Range | 380 MHz – 430 MHz |
| V.S.W.R (MAX) | ≤ 2.0:1 (≤ 1.5:1 @ 390-415 MHz) |
| Peak Gain | 6 dBi (5.5 dBi Avg.) |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 250 Watts |
| Antenna Design | 1/4 Wavelength Collinear Dipole Array (Copper) |
Mechanical & Environmental

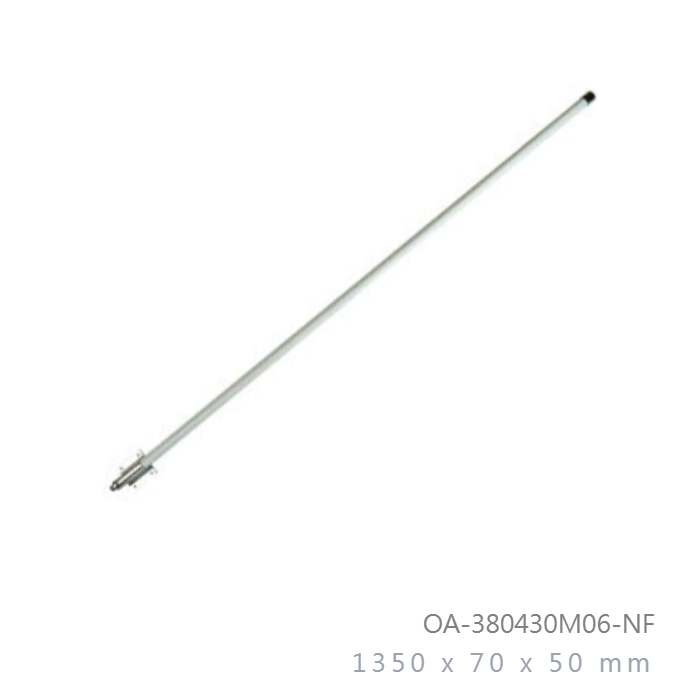

| Dimensions | 1350 x 70 x 50 mm |
| Total Weight (G.W.) | 1270 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
High-Gain Omni Radiation
Delivers a high 6 dBi peak gain with a tight 32-degree vertical beam-width, significantly extending the coverage range for multipoint public wireless, LTE, and RFID applications.
Integrated Surge Protection
Built-in DC-Short lightning protection provides a critical safeguard for connected radio equipment against atmospheric electrical discharge and static buildup in outdoor environments.
Precision Tactical Mounting
Includes heavy-duty tilt and swivel mast mount brackets (Stainless Steel/Aluminum), allowing for accurate vertical adjustment to optimize signal patterns in the field.
Rugged Weatherproofing
The UV-resistant fiberglass radome and aluminum support structure are engineered for extreme durability, surviving wind speeds over 150 MPH and maintaining peak performance from -40°C to +60°C.
