Applications and Features
-
Electrical Specs
-
Mechanical Specs
Applications:
-
4800MHz - 5000MHz Band
-
IEEE 802.11 System
-
23dBi Directional Multipoint applications
-
Point to Point Bridge / MMDS
-
Public Wireless
-
WiMAX,WLAN,WiFi,802.11a
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance designs
-
DC Short lightning protection
-
Outdoor antenna for public hotspots
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
4400MHz - 5125MHz |
|---|---|
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain (MAX) |
23 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
15 Watts |
|
Vertical Beam-width (AVG) |
9 Deg |
|
Horizontal Beam-width(ACG) |
9 Deg |
| FBR | Greater than 25 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
64(8x8) Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|
Length x Width |
410x410mm |
|---|---|
|
Height |
30mm |
|
Antenna Weight |
1070 g |
|
Accessories |
450 g |
| Application | Indoor / Outdoor |
|

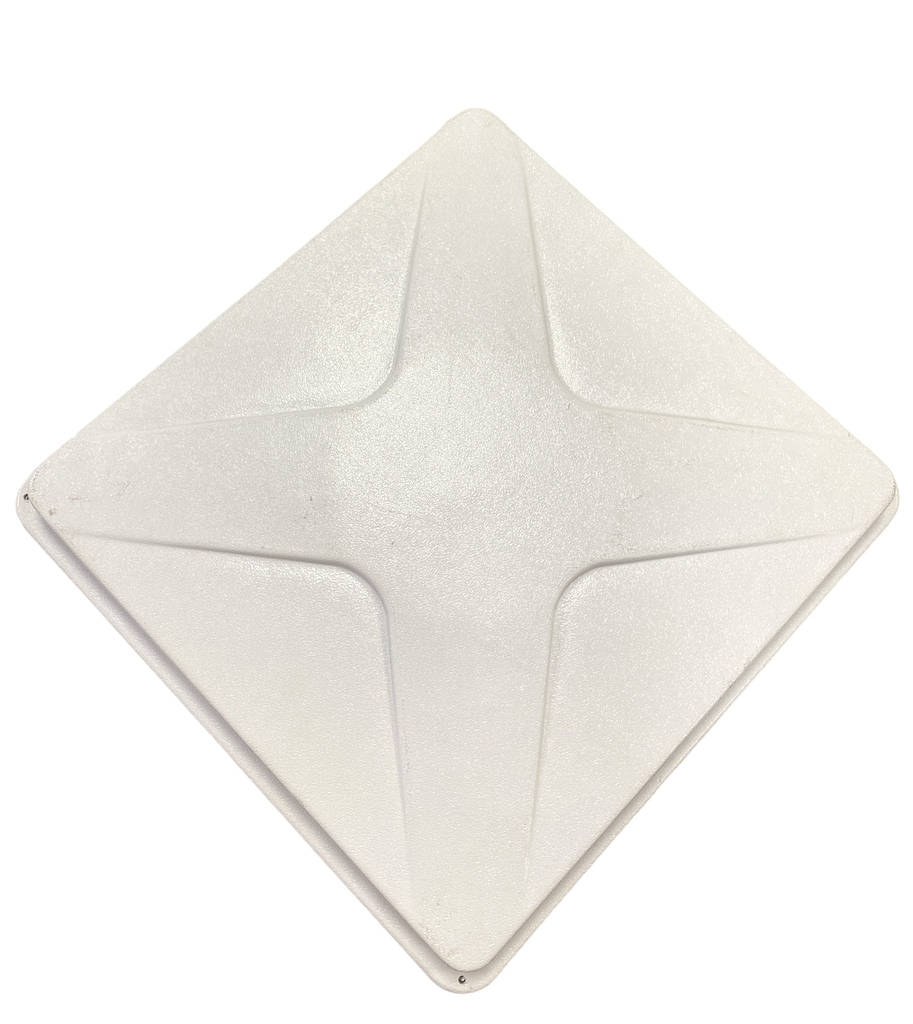

Radome Material |
White ABS |
| Mount Style | Pole Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel and Aluminum |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater than 120MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS |
