Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
4.8GHz-5.0GHz Band
-
IEEE 802.11 System
-

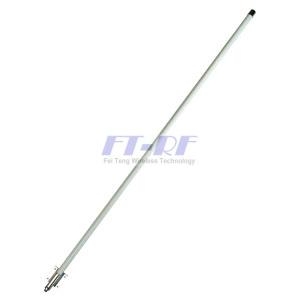

15dBi Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
-
WiMAX,WLAN,WiFi,802.11a
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance designs
-
DC Short lightning protection
-
Antenna support is easily adjusted up and down
-
Behind and support are made of aluminum
-
Outdoor antenna for public spots
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
4800MHz - 5000MHz |
|---|---|
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Collinear |
| Radiation | Omni Directional |
|
Gain |
15 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
100 Watts |
|
Vertical Beam-width |
5 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|
Length (MAX) |
780 mm |
|---|---|
|
Diameter (MAX) |
70 x 50mm |
|
Antenna Weight (G.W) |
530 g |
|
Accessories (G.W) |
70 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
| Mount Style | Pole Mount / Well Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel |
|
Wind Survival |
Greater than 150MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS |
