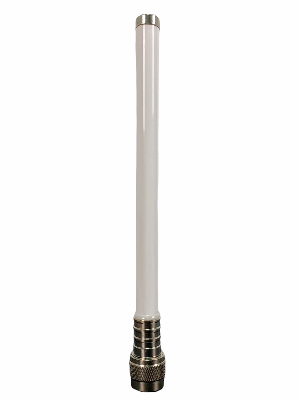

4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Female)4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Female)4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Female)

Model No: OI-496205-NF

  • Dimensions: 165x20mm
  • Weight: 60g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.21 deg
INQUIRY

Applications:

  • 4.9GHz-6.2GHz Band

  • IEEE 802.11 System

  • 5dBi Super Mini Omni Directional Multipoint applications

  • Point to Point Bridge / MMDS / Hotspot

  • Pubic Wireless

  • WiMAX,WLAN,WiFi,802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support are made of aluminum

  • Outdoor antenna for public spots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

4900MHz- 6200MHz

V.S.W.R (MAX)

2.0 :1

Antenna Type

Collinear

Radiation Omnidirectional

Gain

5 dBi

Polarization

Linear

Maximum Power

5 Watts

Vertical Beamwidth

21 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

PCB+Spring

Connector

N-Female

Length

165 mm

Diameter

20 mm

Antenna Weight

60 g

Application

Outdoor / Indoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80
Operating Temperature  -40 to +60

Operating Humidity

10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
