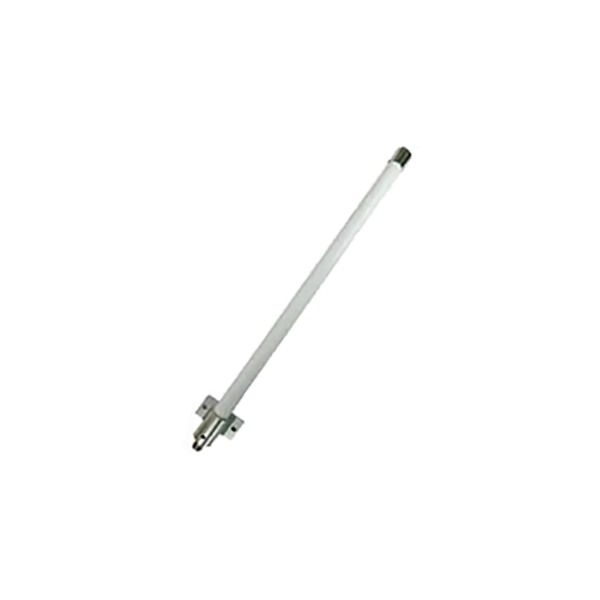

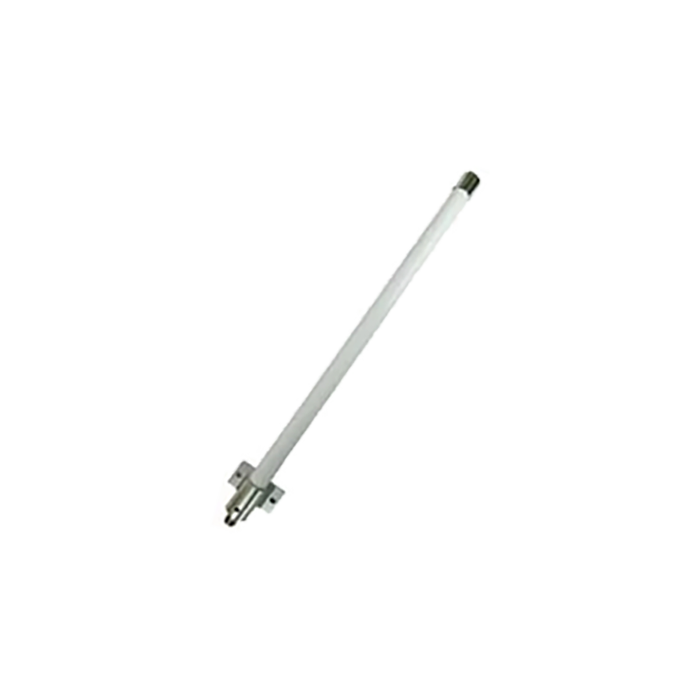

410 MHz to 423 MHz 3dBi Omni Directional Outdoor Antenna N-Female

Model No: OA-4143M03-NF

Datasheet:Download

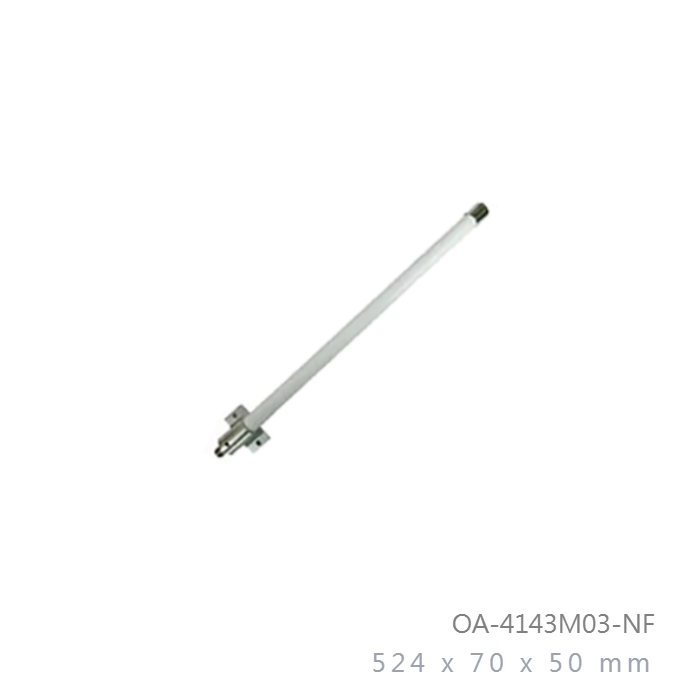

Dimension : 524x70x50mm
Weight: 375g
Connector: N-Female
Beam-width: Horz.360 deg Vert.66 deg

INQUIRY

Applications:

  • Outdoor antenna with 380MHz to 420MHz Band
  • Offering excellent utilization of VHF&UHF radio spectrum
  • Directional and multipoint applications
  • N-female connector
  • Public Wireless Hotspot
  • Mobile, RFID, LTE, 4G
  • Wireless Video Systems

Features:

  • Superior performance
  • DC Short lightning protection
  • Ensuring reliable operation in a harsh environment.
  • Low VSWR
  • High gain and quality standard
  • RoHS Compliant

Frequency Range

410MHz to 423MHz

V.S.W.R

405-435MHz (≤ 2.0:1)

410-423 MHZ (≤ 1.7: 1)

Antenna Type

Dipole

Radiation

Omni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

100 Watts

Vertical Beam-width

67 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Female

Length

524mm+/-5mm

Diameter

70 x 50 mm

Antenna Weight

284 g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

U type Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

WEEE. CE, FCC, RoHS
