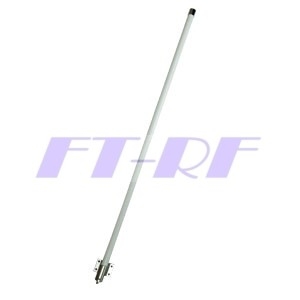

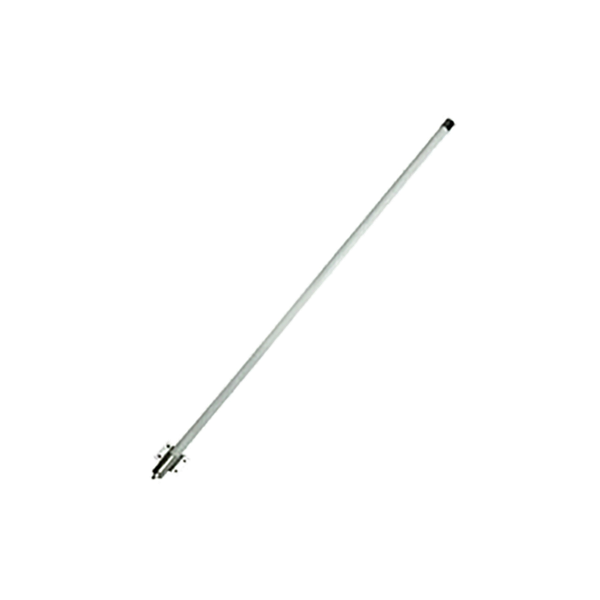

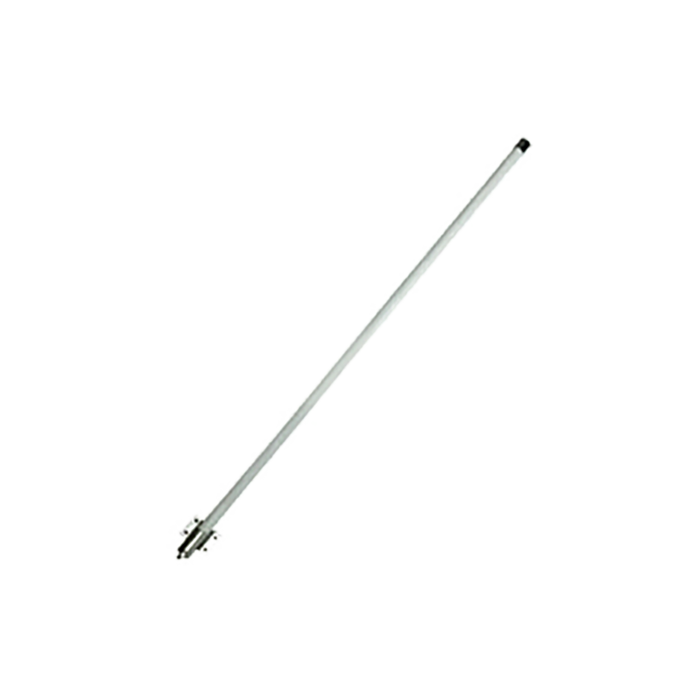

430MHz to 436MHz 6dBi Outdoor Omni-Directional Antenna

Model No: OA-430433M06-NF

Mechanical Drawing:Download

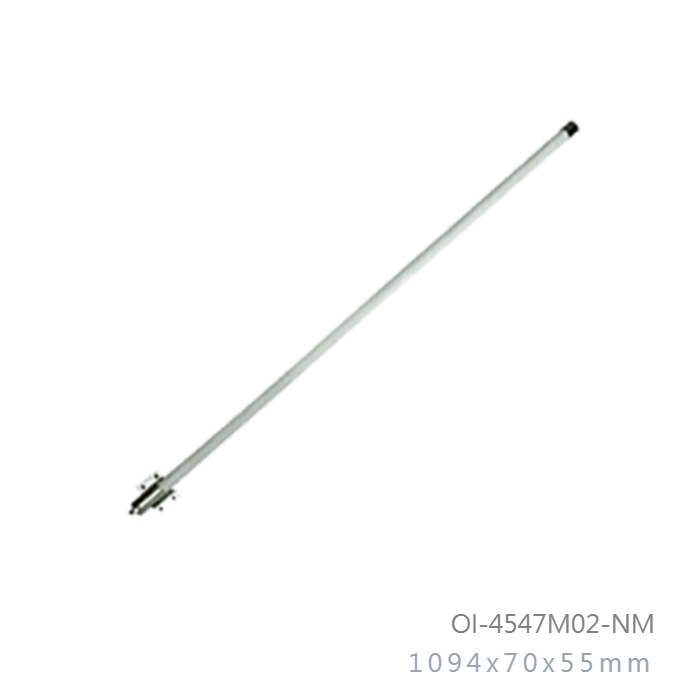

Dimension : 1094x70x55mm
Weight : 350g
Connector : N-Female
Beam-width : Horz.360 deg Vert.65 deg

INQUIRY

Applications:

  • 430 Mhz to 436MHz 6dBi Outdoor Omni-Directional Antenna
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

430MHz to 436MHz

V.S.W.R (MAX)

1.5:1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

6 dBi

Polarization

Vertical

Maximum Power

100 Watts

Vertical Beam-width

36 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1094mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

350 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety,Emission and other

CE, FCC, RoHS
