UHF Professional Omni Solutions

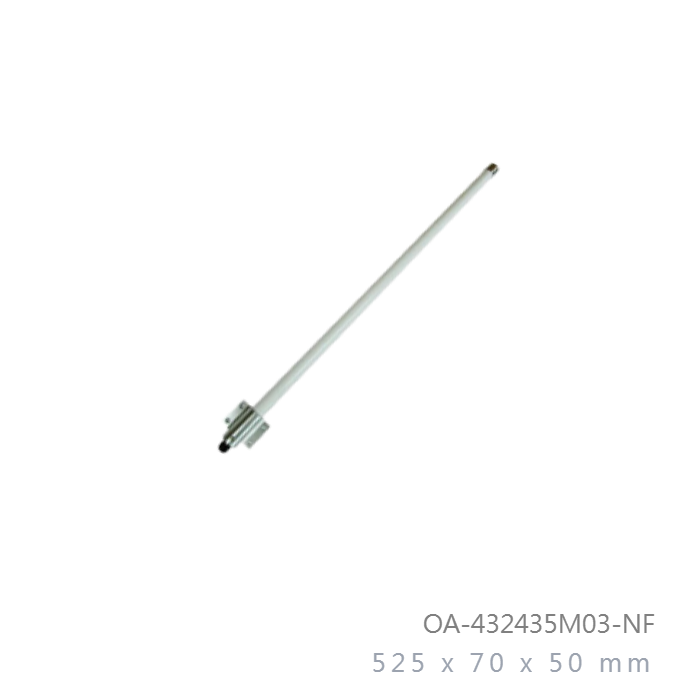

432 - 435 MHz Professional Collinear Omni Antenna
High-performance industrial collinear antenna optimized for the 432-435 MHz band. Engineered for 360-degree multipoint distribution, this copper-core dipole array provides exceptional signal integrity for public wireless infrastructure, point-to-point bridge links, and wireless video systems.
Electrical Specifications
| Frequency Range | 432 MHz – 435 MHz |
| V.S.W.R (MAX) | ≤ 2.0 : 1 |
| Peak Gain | 3 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Antenna Design | 1/4 Wavelength Collinear Dipole (Copper Internal) |
Mechanical & Environmental
| Dimensions | 525 x 70 x 50 mm |
| Total Weight (G.W.) | 480 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (UV Resistant) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
Superior Spectral Efficiency
Precision-engineered to provide exceptional signal stability in the 430MHz range, delivering a broad 73-degree vertical beam-width for reliable multipoint bridge and hotspot connections.
Integrated Surge Protection
Features built-in DC-Short lightning protection to safeguard connected RF equipment from atmospheric electrical discharge and static buildup in outdoor environments.
Industrial Weatherproofing
Constructed with a rugged UV-resistant fiberglass radome and aluminum components, engineered to maintain structural integrity in extreme weather and wind speeds exceeding 150 MPH.
Tactical Mounting Kit
Includes a professional tilt and swivel mast mounting kit, allowing for flexible vertical alignment and precise signal pattern optimization after installation.
