UHF High-Gain Omni Solutions

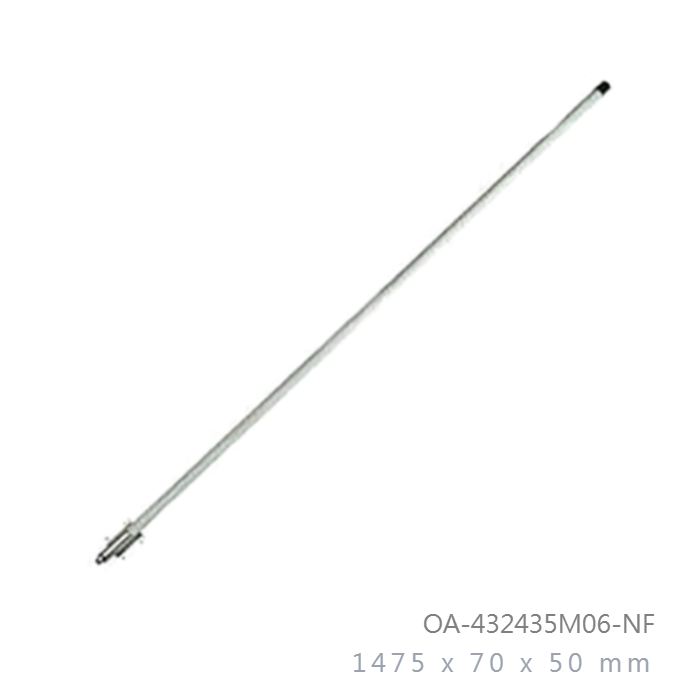

432 - 435 MHz Professional High-Gain Collinear Omni Antenna
Professional industrial-grade high-gain collinear antenna array designed for 360-degree wireless distribution. Featuring a high-durability fiberglass radome and copper internal dipole elements, it is optimized for public wireless infrastructure, amateur radio (70cm band), and long-range wireless video systems.
Electrical Specifications
| Frequency Range | 432 MHz – 435 MHz |
| V.S.W.R (MAX) | ≤ 2.0 : 1 |
| Peak Gain | 6 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Antenna Design | 1/4 Wavelength Collinear Dipole Array (Copper) |
Mechanical & Environmental
| Dimensions | 1475 x 70 x 50 mm |
| Antenna Weight | 962 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
High-Gain Omni Coverage
Delivers a high 6 dBi peak gain with a tight 30-degree vertical beam-width, ensuring maximum horizontal signal reach for multipoint bridge links and public hotspots.
Integrated Surge Protection
Equipped with built-in DC-Short lightning protection to safeguard connected RF equipment against atmospheric electrical discharge and static in outdoor environments.
Superior Spectral Utilization
Optimized for the 432-435MHz UHF spectrum, providing stable impedance (50 Ohm) and low VSWR for mission-critical video transmission and RFID systems.
Extreme Industrial Build
The UV-protected fiberglass radome and aluminum components are engineered to maintain structural integrity in wind speeds exceeding 150 MPH and extreme thermal conditions.
