UHF Professional Omni Solutions

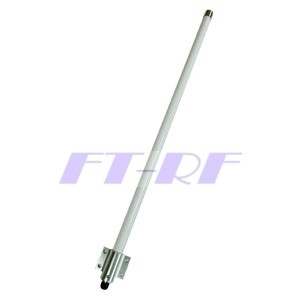

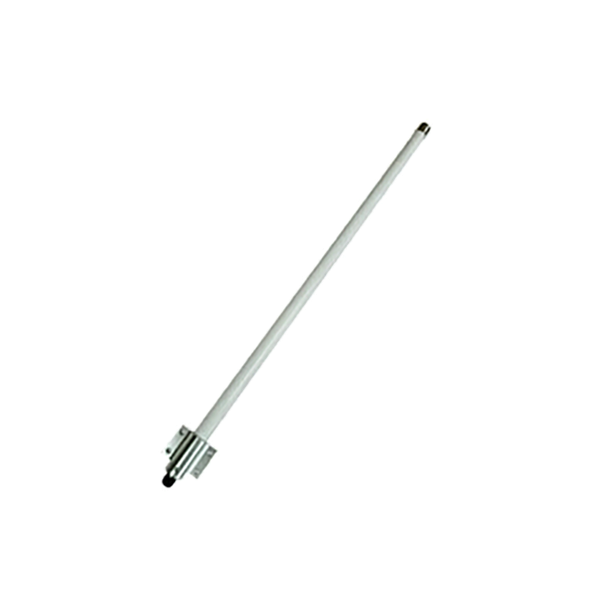

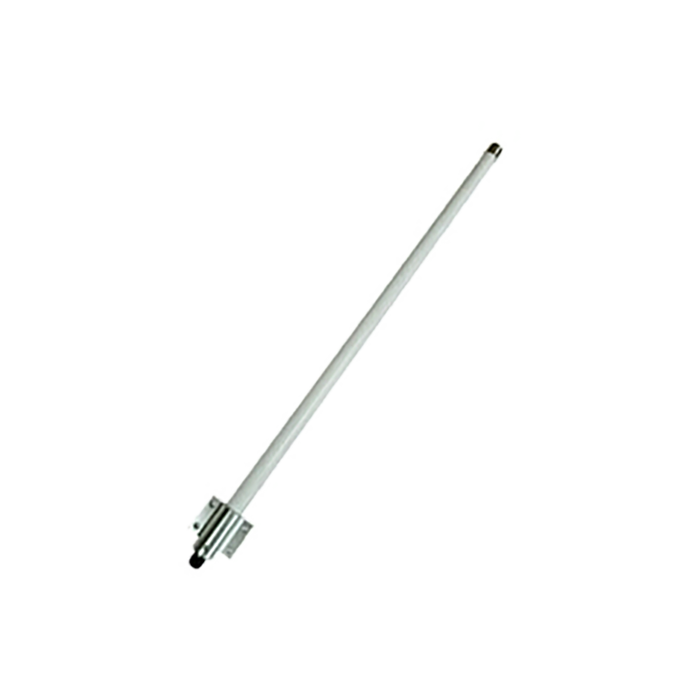

450 - 470 MHz Professional Collinear Omni Antenna
High-performance industrial collinear antenna optimized for the 450-470 MHz spectrum. Engineered for 360-degree multipoint applications, this copper-core dipole array delivers exceptional vertical beam-width stability for public wireless hotspots and wireless video systems.
Electrical Specifications
| Frequency Range | 450 MHz – 470 MHz |
| V.S.W.R (MAX) | ≤ 1.5 : 1 |
| Peak Gain | 3 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 100 Watts |
| Vertical Beam-width | 86° |
| Antenna Design | Collinear Dipole Array (Copper Internal) |
Mechanical & Environmental
| Dimensions | 523 x 70 x 50 mm |
| Total Weight (G.W.) | 420 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | RoHS Compliant |
Engineering Core Features
Superior Spectral Utilization
Precision-engineered to provide exceptional signal efficiency in the 450-470MHz band, ideal for multipoint bridge links, hotspots, and industrial wireless infrastructure.
Integrated Surge Protection
Built-in DC-Short lightning protection safeguards connected RF hardware from atmospheric electrical discharge and static buildup in demanding outdoor environments.
Broad Vertical Beam-width
An expansive 86-degree vertical beam-width ensures robust signal penetration and consistent connectivity for near-field multipoint applications and mobile systems.
Industrial Weatherproofing
The UV-protected fiberglass radome and aluminum components are engineered to maintain structural integrity in extreme weather and wind speeds over 150 MPH.
