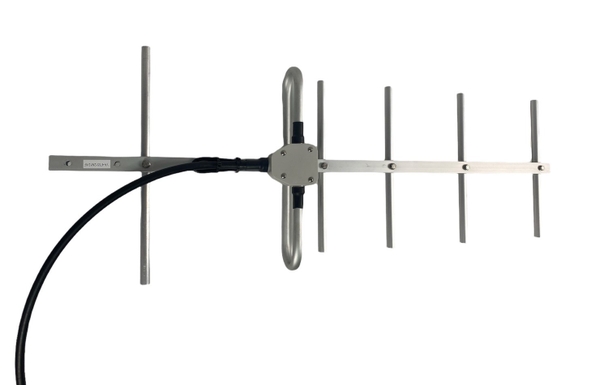

470MHz to 512MHz 12dBi Yagi Directional Outdoor Antenna470MHz to 512MHz 12dBi Yagi Directional Outdoor Antenna470MHz to 512MHz 12dBi Yagi Directional Outdoor Antenna

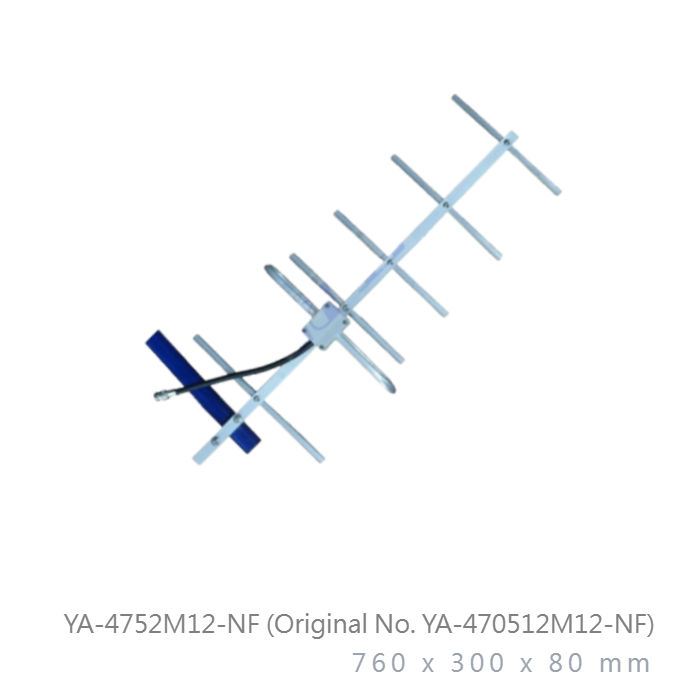

Model No: YA-4752M12-NF (Original No. YA-470512M12-NF)

Datasheet:Download

Original No. YA-470512M12-NF

  • Dimension : 760mmx300x80mm
  • Weight : 1250g
  • Connector : N-Female
  • Beam-width : Horz.37 deg Vert.59 deg
INQUIRY

Applications

  • 470 to 512MHz Band
  • Maximum 12dBi gain, which offers the best performance with reliable connections

Features

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • High gain, high-quality standards
  • Can work well in a harsh environment
  • Low VSWR, increasing the efficiency of the antenna
  • Excellent utilization of VHF&UHF radio spectrum.
  • The antenna has N-female connector

Frequency Range

470MHz to 512MHz

V.S.W.R (MAX)

2:0 :1

Antenna Type

Yagi

Radiation Yagi Directional

Gain (MAX)

12 dBi

Polarization

Vertical or Horizontal

Maximum Power

500 Watts

Vertical Beam-width

59 Deg

Horizontal Beam-width

37 Deg

Impedance

50 Ohm

Antenna Design

Folded Dipole Balun Yagi

Internal Material

CFD400 Cable

Connector

N-Female

Length (MAX)

760mm

Diameter (MAX)

300 x 80mm

Antenna Weight (G.W)

900 g

Accessories (G.W)

350 g

Application Indoor / Outdoor

Radome Material

ABS+UV

Parts Material

Aluminum

Mount Style 1~1.5" Pole Mount
Mounting Stainless Steel

Wind Survival

Greater than 120MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety,Emission and other

CE, FCC, RoHS
