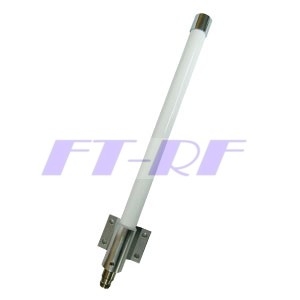

480MHz to 520MHz 2dBi Omni Directional Outdoor Antenna480MHz to 520MHz 2dBi Omni Directional Outdoor Antenna480MHz to 520MHz 2dBi Omni Directional Outdoor Antenna

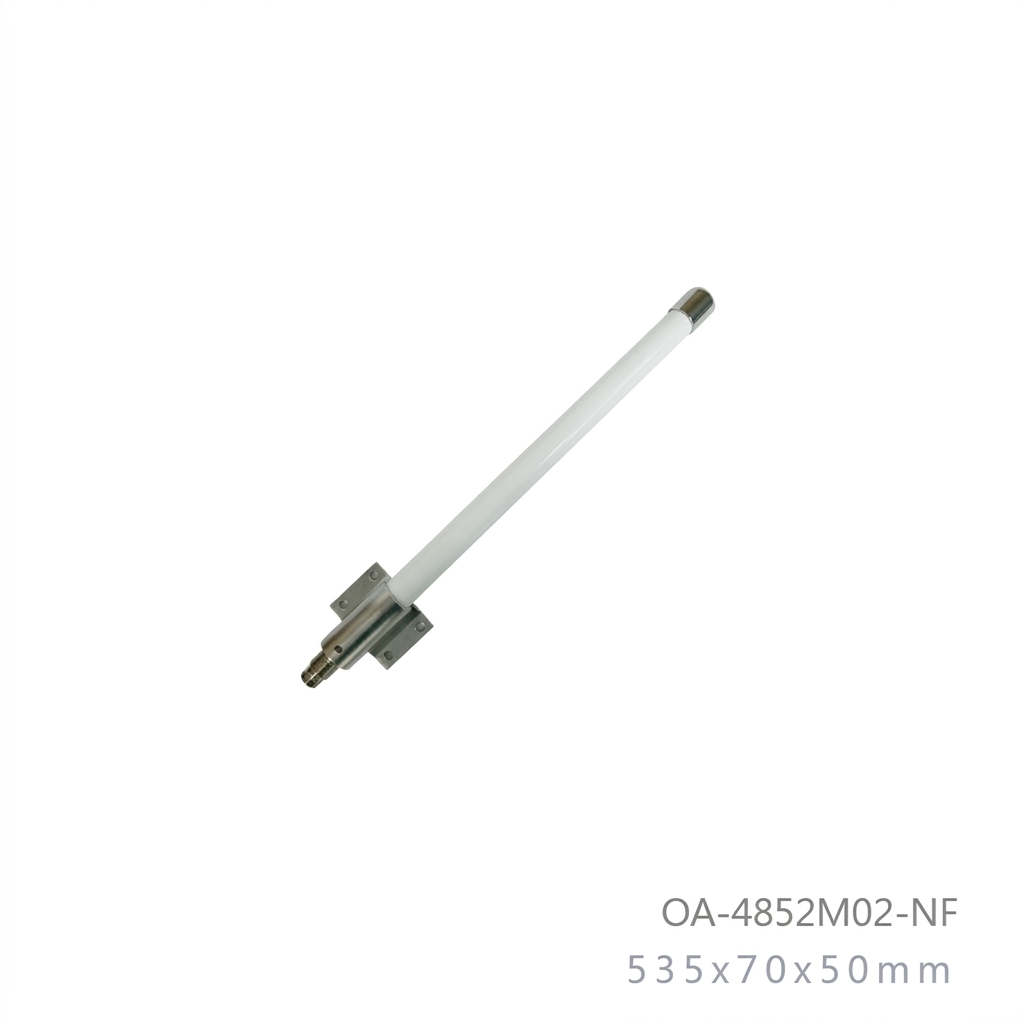

Model No: OA-4852M02-NF

  • Dimension : 535x70x50mm
  • Weight : 320g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.87 deg
INQUIRY

Applications:

  • 480MHz to 520MHz 2dBi Omni Directional Outdoor Antenna
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

480MHz to 520MHz

V.S.W.R (Avg)

 1.5:1

Antenna Type

Collinear

RadiationOmni Directional

Gain (Avg)

2 dBi

Polarization

Vertical

Maximum Power

200 Watts

Vertical Beam-width

87 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Female

Length (MAX)

535mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

320 g

Accessories (G.W)

50 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety,Emission and other

 RoHS
