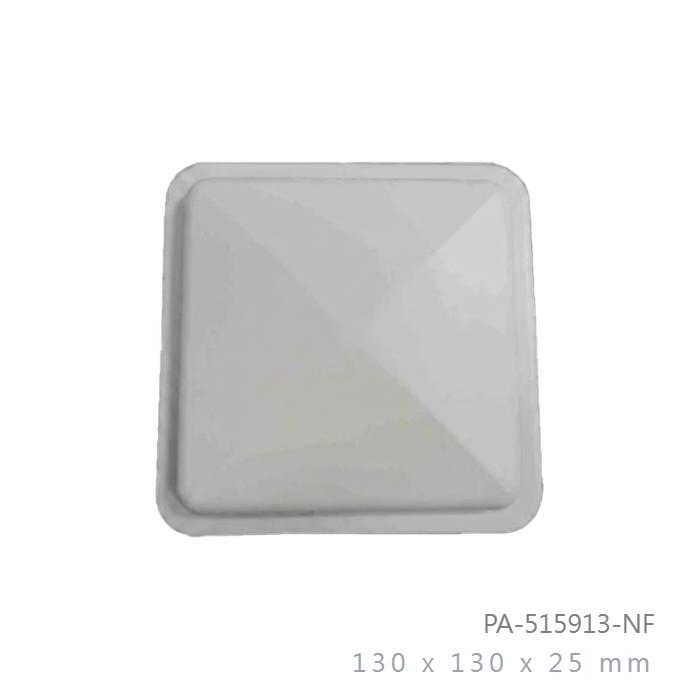

5.125GHz-5.875GHz 13dbi Panel Directional Outdoor Antenna5.125GHz-5.875GHz 13dbi Panel Directional Outdoor Antenna5.125GHz-5.875GHz 13dbi Panel Directional Outdoor Antenna

Model No: PA-515913-NF

  • Dimensions: L130xW130xH25mm
  • Weight: 150g
  • Connector: N-Female
  • Beam-width: Horz.36 Deg Vert.26 Deg
INQUIRY

Applications:

  • 5.15GHz-5.875GHz Band
  • IEEE 802.11 System
  • 13dBi Directional Multipoint applications
  • Point to Point Bridge / MMDS
  • Public Wireless
  • WiMAX,WLAN,WiFi,802.11a
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • Good appearance designs
  • DC Short lightning protection
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13 dBi

Polarization

Vertical or Horizontal

Maximum Power

10 Watts

Vertical Beam-width

26 Deg

Horizontal Beam-width

36 Deg

FBR Greater than 18 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

130 x 130mm

Height (MAX)

25mm

Antenna Weight (G.W)

150 g

Accessories (G.W)

180 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount / Well Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
