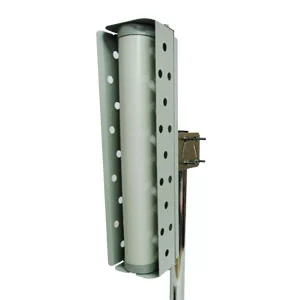

5.125GHz-5.875GHz 14-18dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna5.125GHz-5.875GHz 14-18dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna5.125GHz-5.875GHz 14-18dBi Adjust 45-120 Deg Vertical Sector Directional Outdoor Antenna

Model No: SE-515918C-NF

  • Dimensions: 500x200x80mm
  • Weight: 2.4KG
  • Connector: N-Female
  • Beam-width: Horz.45-120 Deg Vert.11-15 Deg
INQUIRY

Applications:

  • 5.125GHz-5.875GHz Band

  • IEEE 802.11a, Wireless Lan

  • Directional Multipoint applications

  • Point to Point Bridge and Multipoint Point

  • WiMAX,WiFi / WiMAX

  • Pubic Wireless Hotspot

  • Wireless Video Systems

  • Adjustment Gain and antenna cover angle

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Colinear

Radiation Directional

Gain

14 ~ 18 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

Adjust 11~15 Deg

Horizontal Beam-width

Adjust 45~120 Deg

FBR Greater than 20 dB

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length x Width(MAX)

520 x 200mm

Diameter (MAX)

80mm

Antenna Weight (G.W)

2100 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

ABS + Glass Fiber

Mount Style Pole Mount

Paets Material

Painted Galvanized Steel

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater then 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
