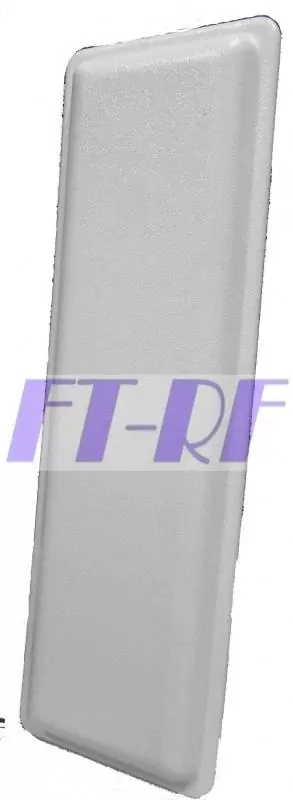

5.125 GHz to 5.875 GHz 15dbi Circularly LHCP Panel Directional Outdoor Antenna5.125 GHz to 5.875 GHz 15dbi Circularly LHCP Panel Directional Outdoor Antenna5.125 GHz to 5.875 GHz 15dbi Circularly LHCP Panel Directional Outdoor Antenna

Model No: PL-515915-NF

  • Dimensions: L370xW115xD20mm
  • Weight: 350g
  • Connector: N-Female
  • Beam-width: Horz.98 Deg Vert.9Deg
INQUIRY

Applications:

  • 5.15GHz-5.875GHz Band

  • IEEE 802.11 System

  • 15dBi Directional Multipoint applications

  • Point to Point Bridge / MMDS

  • Public Wireless

  • WiMAX,WLAN,WiFi,802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

15 dBi

Polarization

Circularly LHCP

Maximum Power

30 Watts

Vertical Beam-width

9 Deg

Horizontal Beam-width

98 Deg

FBR Greater than 28 dB

Impedance

50 Ohm

Antenna Design

8(1x8) Patch Array

Internal Material

PTFE (Rogers)

Connector

N-Female

Length x Width

370 x 115mm

Height

20mm

Antenna Weight

350 g

Accessories

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
