Applications and Features
-
Electrical Specs
-
Mechanical Specs
Applications:
-
5.15GHz-5.875GHz Band
-
IEEE 802.11 System
-

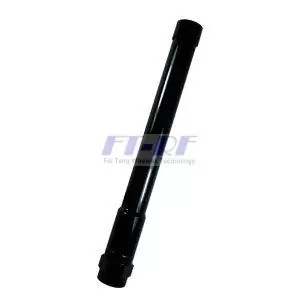

3dBi Mini Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
-
WiMAX,WLAN,WiFi,802.11a
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance designs
-
DC Short lightning protection
-
Narrow base station descent
-
Behind and support is an aluminum
-
Outdoor antenna for public
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
5125MHz - 5875MHz |
|---|---|
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Collinear |
| Radiation | Mini Omni Directional |
|
Gain |
3 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
100 Watts |
|
Vertical Beam-width |
30 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|
Length |
160 mm |
|---|---|
|
Diameter |
20 x 20mm |
|
Antenna Weight |
130 g |
|
Accessories |
0.01 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
| Mount Style | No |
|
Parts Material |
Aluminum or Copper |
| Mounting | Optional |
|
Wind Survival |
Greater than 180MPH |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
