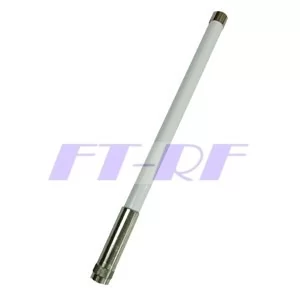

5.125 GHz to 5.875 GHz 8dbi Mini Omni directional Outdoor Antenna (N-Male)

Model No: OS-515908-NM

Datasheet:Download

  • Dimensions: 315x20x20mm
  • Weight: 171g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.12 deg
INQUIRY

Applications:

  • 5.15GHz-5.875GHz Band

  • IEEE 802.11 System

  • 8dBi Mini Omni Directional Multipoint applications

  • Point to Point Bridge / MMDS / Hotspot

  • Public Wireless

  • WiMAX,WLAN,WiFi,802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support is an aluminum

  • Outdoor antenna for public

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5125MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Mini Omni Directional

Gain

8 dBi

Polarization

Vertical

Maximum Power

100 Watts

Vertical Beam-width

12 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Male

Length

315 mm

Diameter

20 x 20mm

Antenna Weight

170 g

Accessories

0.01 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style No

Parts Material

Aluminum or Copper

Mounting Optional

Wind Survival

Greater than 180MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
