Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-

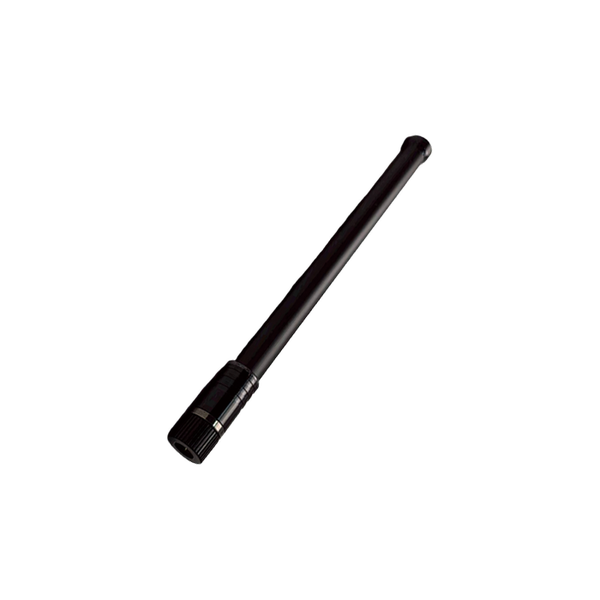

5.4 to 5.9 GHz Omni-directional
-
IEEE 802.11b, 802.11g, 802.11n Wireless LAN
-
Omni-directional Applications
-
Public Wireless Hotspots
-
Wi-Fi, RFID
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good Appearance Design
-
RoHS Compliant
|
Frequency Range |
5400MHz - 5900MHz |
|---|---|
|
VSWR (Max) |
2.0 |
|
Antenna Type |
Collinear |
| Radiation | Omni-directional |
|
Gain |
5 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
20 Watts |
|
Vertical Beamwidth |
21 Deg |
|
Horizontal Beamwidth |
360 Deg |
|
Impedance |
50 Ohms |
|
Antenna Design |
Dipole Array |
|
Internal Material |
PCB + Spring |
|
Connector |
SMA-Male |
|

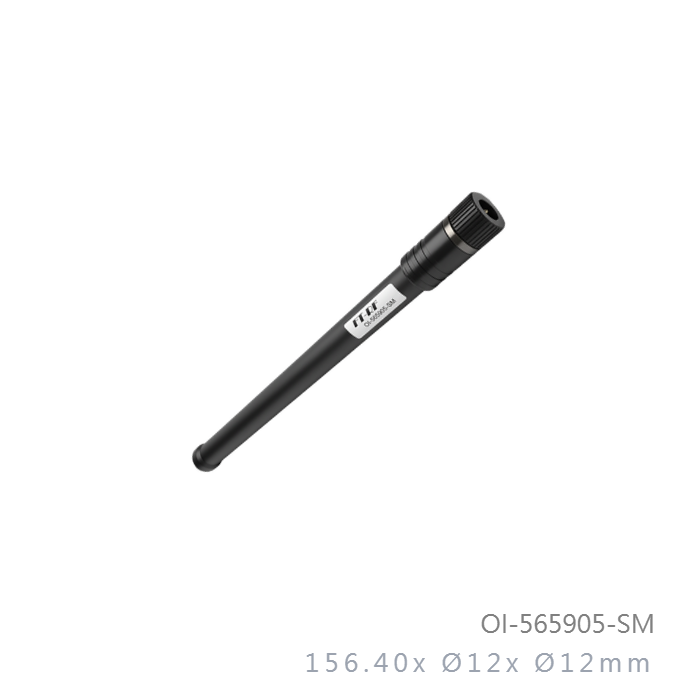

Length |
156 mm |
|---|---|
|
Diameter |
12 mm |
|
Antenna Weight |
29 g |
|
Application |
Indoor / Outdoor |
|
Radome Material |
Black Fiberglass |
|
Parts Material |
Copper |
|
Wind Survival |
> 150 MPH |
|
Storage Temperature |
-40 to +80 |
| Operating Temperature | -40 to +80 |
|
Operating Humidity |
10%~80% Non-condensing |
| Storage Humidity |
5%~80% Non-condensing |
|
Safety, Emission and Other |
CE, FCC, RoHS |
